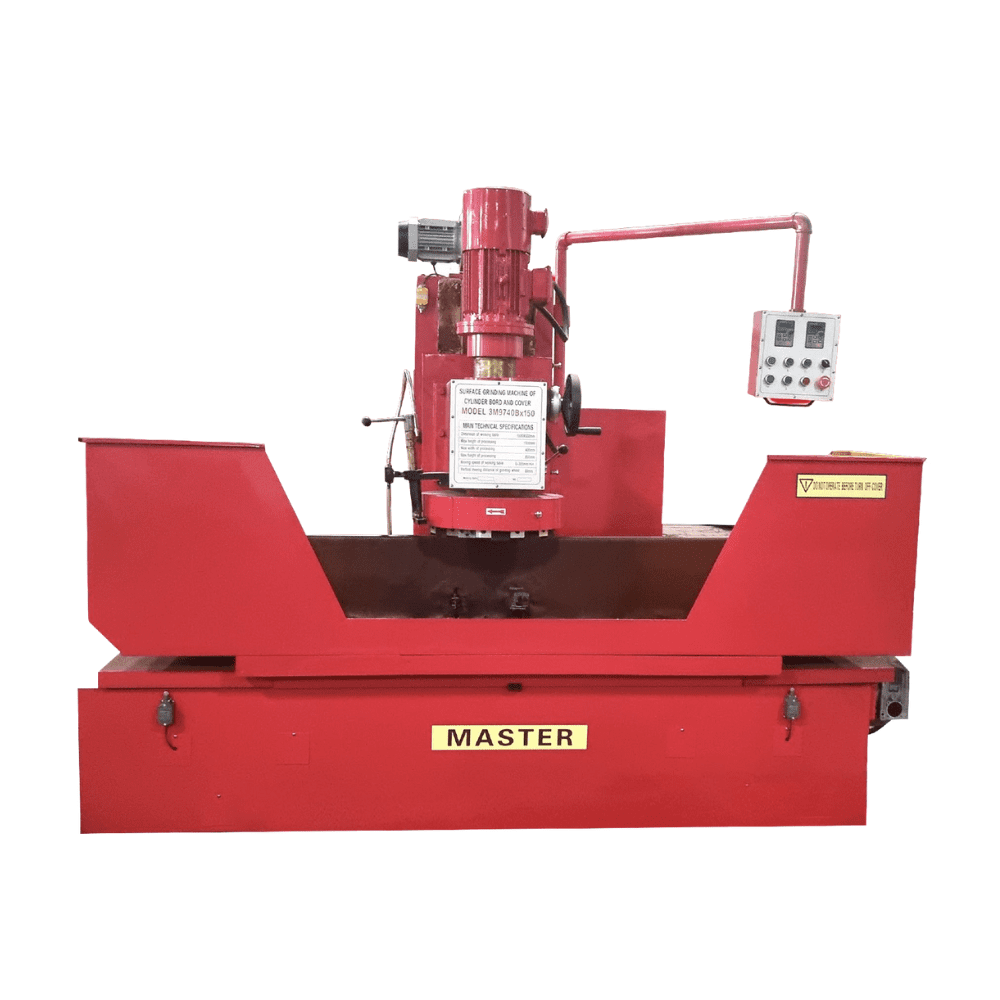

| Specification | 3M9740 x 170 | 3M9740 x 150 |
|---|---|---|
| Working table size | 1700×500mm | 1500×500mm |
| Max. length of grinding | 1700mm | 1500mm |
| Max. width of grinding | 400mm | 400mm |
| Max. height of grinding | 600mm | 600mm |
| Vertical moving distance of grinding head | 120mm | 120mm |
| Transverse moving speed of working table | 40-900mm/min | 30-900mm/min |
| Grinding wheel disk diameter | 420mm | 420mm |
| Max. spindle speed | 1400 rpm V-speed | 1400 rpm V-speed |
| Electric motor power cooling down | 0.4Kw | 0.4Kw |
| Power of the main motor | 3.3Kw | 3.3Kw |
| Overall dimensions (L×W×H) | 2650×1050×2100mm | 2800×1050×2100mm |
| Packing dimensions (L×W×H) | 3400×1150×2280mm | 3200×1150×2280mm |
| N.W. / G.W. | 3000/3200kg | 2800/3000kg |
