The machine tool is mainly used for honing automobile and tractor cylinders with diame- ters from Φ40 to Φ140 after boring precess. The machine tool is small in size, light in weight and simple in construction. The machine tool proper can be slid crosswise on the table top at will to facilitate operation. The up-and-down reciprocating motion of which can be adjusted randomly. Honing process can be carried out after the cylinder block to be honed is placed on the worktable, adjusted to centre position and secured.

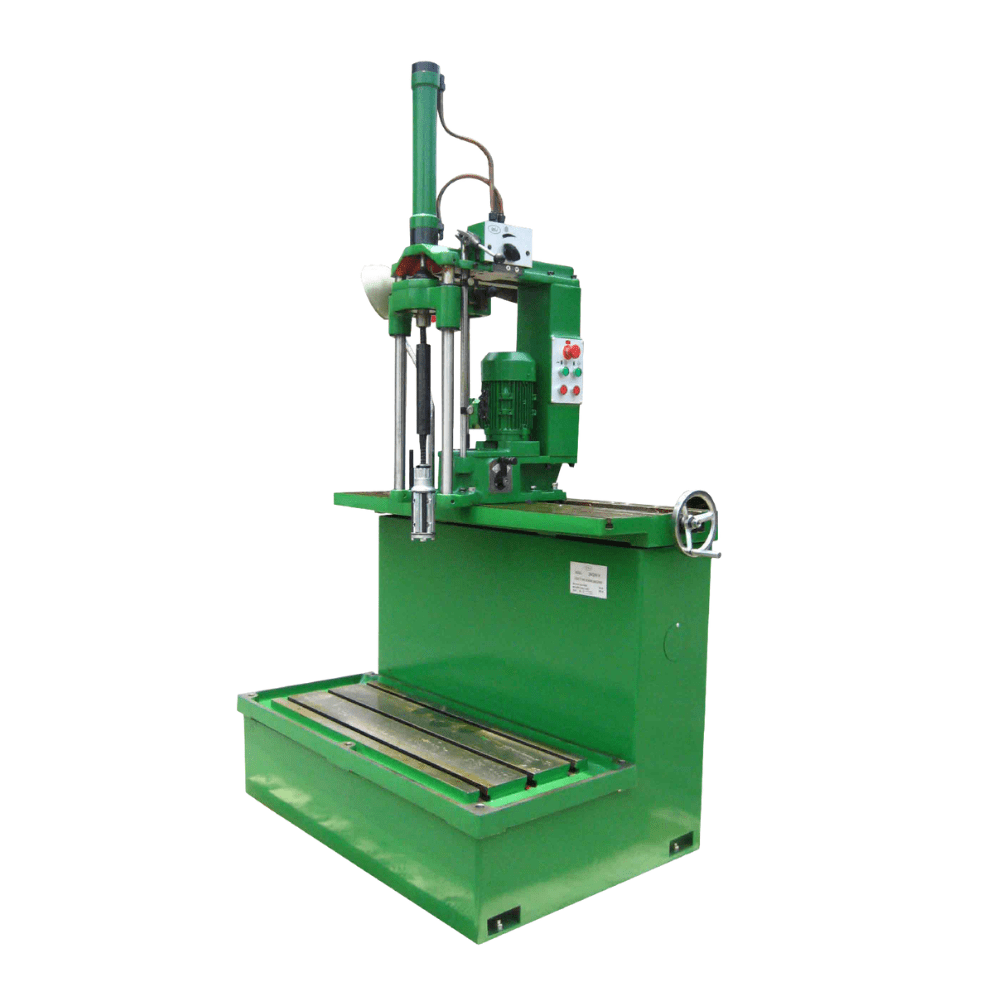

3MQ9814 Light Cylinder Honing Machine

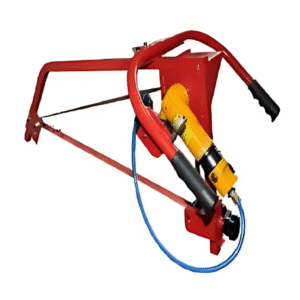

| Models | CPA-100 | |
| Order Part | Description | Qty |
| Hp72/brack/complete | Fixed Bracket | 1 |
| CF65200604 | 90-Deg. Air Fitting | 2 |
| APM45/Kit | Air Motor Replacement | 1 |
| V8107/Kit | Air Valve Kit | 1 |
| AP19a/frame/only | Top Frame Only | 1 |
| AP19b/frame/only | Bottom Frame Only | 1 |
| AP72B/Kit Or | Roler kit-For 3/4" - 1-1/4" Wide belts | 1-set |
| AP72D/Kit | Roler kit-For 1-1/4" - 2" Wide belts | 1-set |
| HP72121C/Complete | Adjustable Bracket Asy With Screws | 1 |
| HP72121E Bracket Only | (For new EBracket Se fig. 2) | |
| 38PH | Air Hose-Nylon | 16" |
| G6102 | Replacement Handle Grips | 2 |
| K4146 | Small Star Knob 1/4-20 thread | 1 |
| K4147 | Large Star Knob 3/8"-16 thread | 1 |
| HP72121E/Spacer | Inlet Spacers | 1-set |
