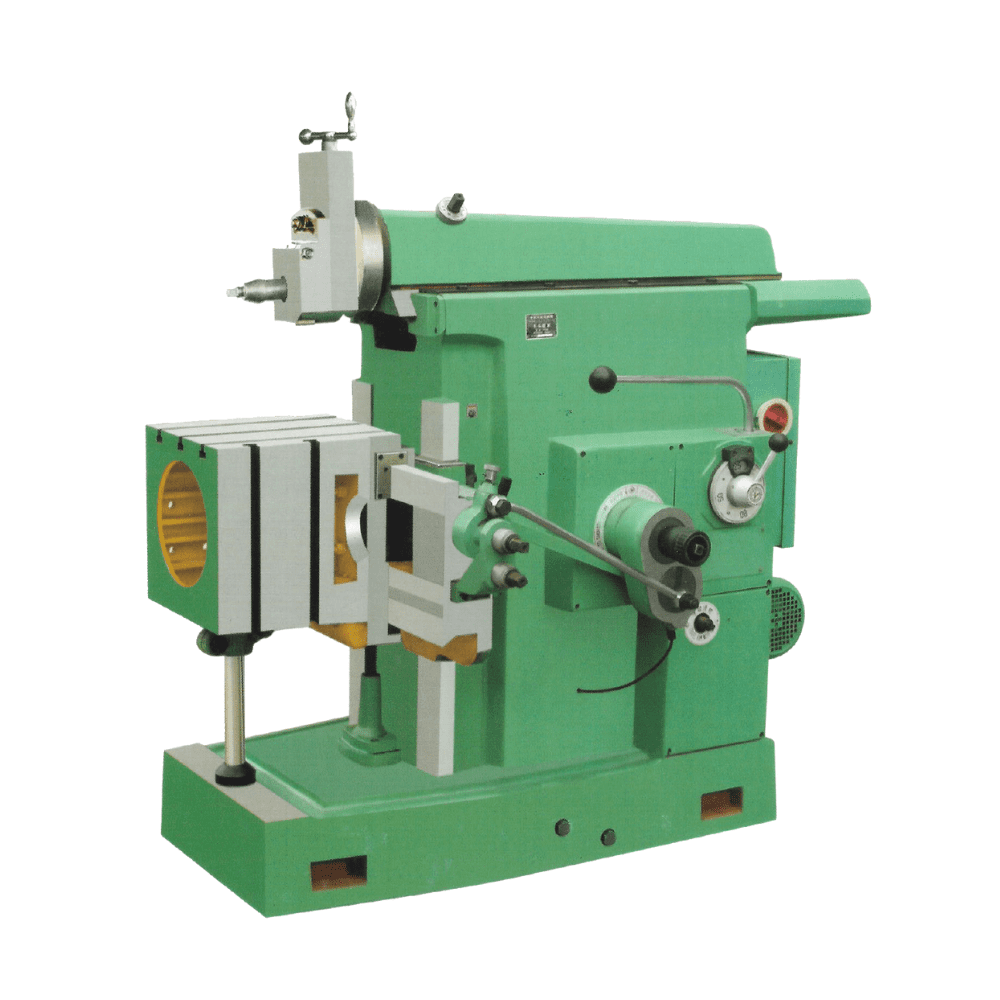

B635A Shaping Machine
| Models | B635A | |
| Maximum planing length | 350mm | |
| Ram underside to table the maximum distance | 330mm | |
| Worktable maximum moving distance (horizontal) | 400mm | |
| Worktable maximum moving distance (vertical) | 270mm | |
| Leading surface of the planer to bed out of the maximum distance | 550mm | |
| The maximum displacement of the ram | 170mm | |
| Maximum turning angle of the worktable (no vise) | ±90° | |
| Maximum turning angle of worktable (vise) | ±55° | |
| The turret maximum vertical travel | 110mm | |
| Ram reciprocating frequency per minute | 32, 50, 80, 125 | |
| The ram back and forth a tablefeed amount | Wheeled round a tooth (vertical) | 0.18mm |
| Wheeled round a tooth (horizontal) | 0.21mm | |
| Wheel rotation 4 tooth (vertical) | 0.73mm | |
| Wheel rotation 4 tooth (horizontal) | 0.84mm | |
| Electric motor | 1.5kw 1400r/min | |
| Carton size | 1530x930x1370mm | |
| N.W / G.W | 1000kg/1200kg | |
