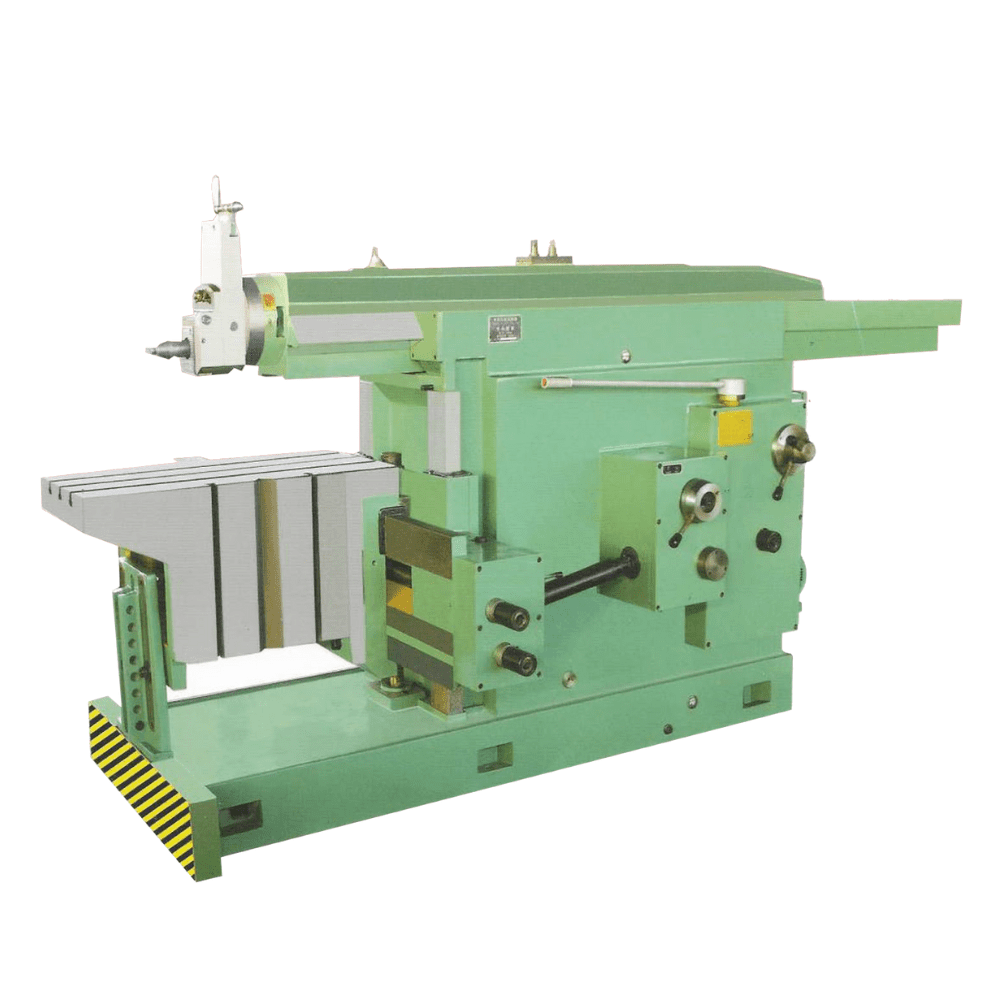

BC60100 Shaping Machine
| Models | BC60100 |
| Maximum cutting length | 1000mm |
| Maximum table horizontal travel | 800mm |
| Maximum distance from ram bottom to table surface | 400mm |
| Maximum table vertical travel | 380mm |
| Dimensions of table top surface LxW | 1000x500mm |
| Travel of tool head | 160mm |
| Swivel of tool head | ±60° |
| Maximum size of tool shank WxT | 30x45mm |
| Number of ram strokes per min | 15, 20, 29, 42, 58, 83 |
| Horizontal | 0.3-3mm |
| Vertical | 0.15-0.5mm |
| Horizontal | 3mm |
| Vertical | 0.5mm |
| Width of central T-slot of table | 22mm |
| Power of motor | 7.50kw |
| Overall dimensions LxWxH | 3640x1575x1780mm |
| N.W/G.W | 4870/5150kg |
