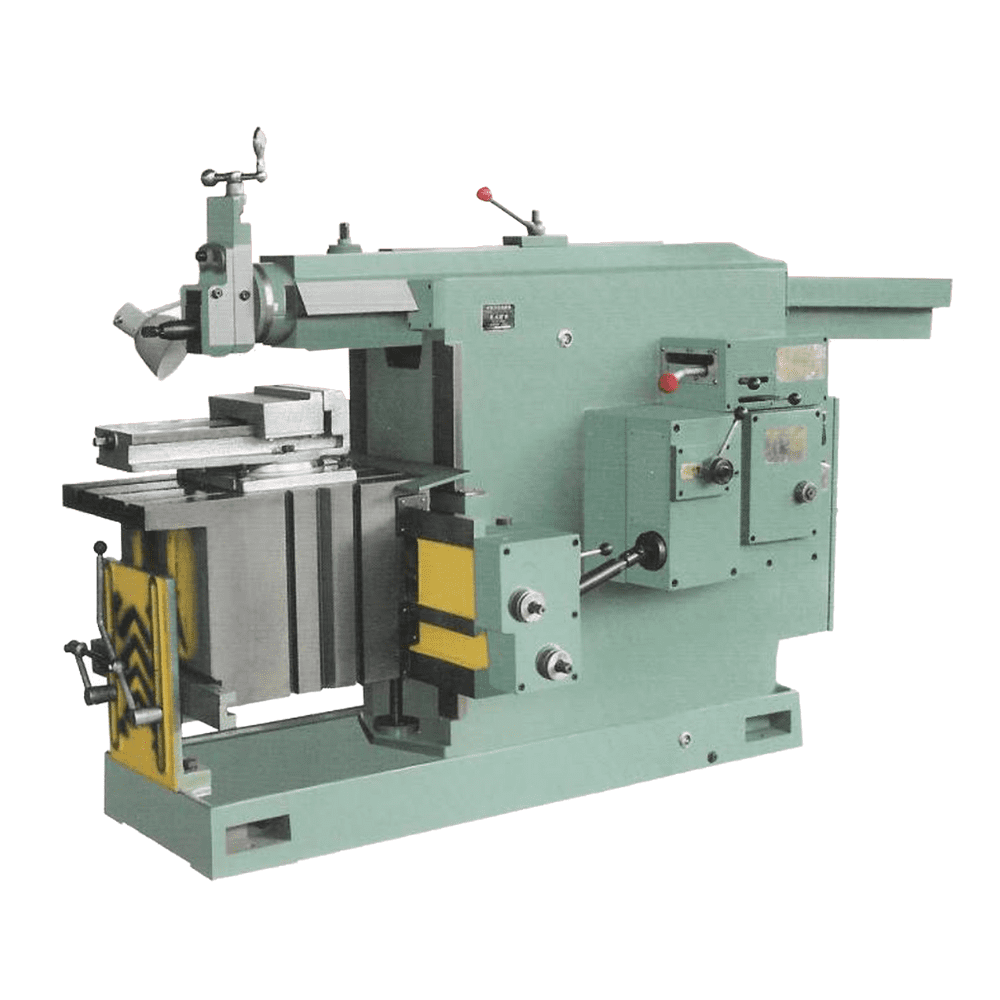

BC6050, BC6063 Shaping Machine
| Models | BC6050 | BC6063 |
| Max. planing length | 500mm | 630mm |
| Max. range of the horizontal movement of the table | 370mm | 385mm |
| Max. distance between the ram bottom and table | 525mm | 630mm |
| Max. length of the vertical movement of table | 270mm | 360mm |
| Dimension of table top (LxW) | 440x360mm | 630x400mm |
| Max. stroke length of the toolhead | 120mm | 120mm |
| Number of ram reciprocation per minute | 14-80 times min | 14,20,28,40,56,80 |
| Max. swivel angle of the toolhead | ±60° | ±60° |
| Number of ram reciprocation per minute | 20x30mm | 20x30mm |
| Range of table feed Horizontal | 0.4-5.0mm | 0.4-5.0mm |
| Range of table feed Vertical | 0.08-1.0mm | 0.08-1.00mm |
| Width of the T-slot for center positioning | 18mm | 18mm |
| Power of the main motor | 3kw | 3kw |
| Overall dimensions (LxWxH) | 2000x1250x1400mm | 2000x1300x1550mm |
| N.W/G.W | 1650/1760kg | 1750/1870kg |
