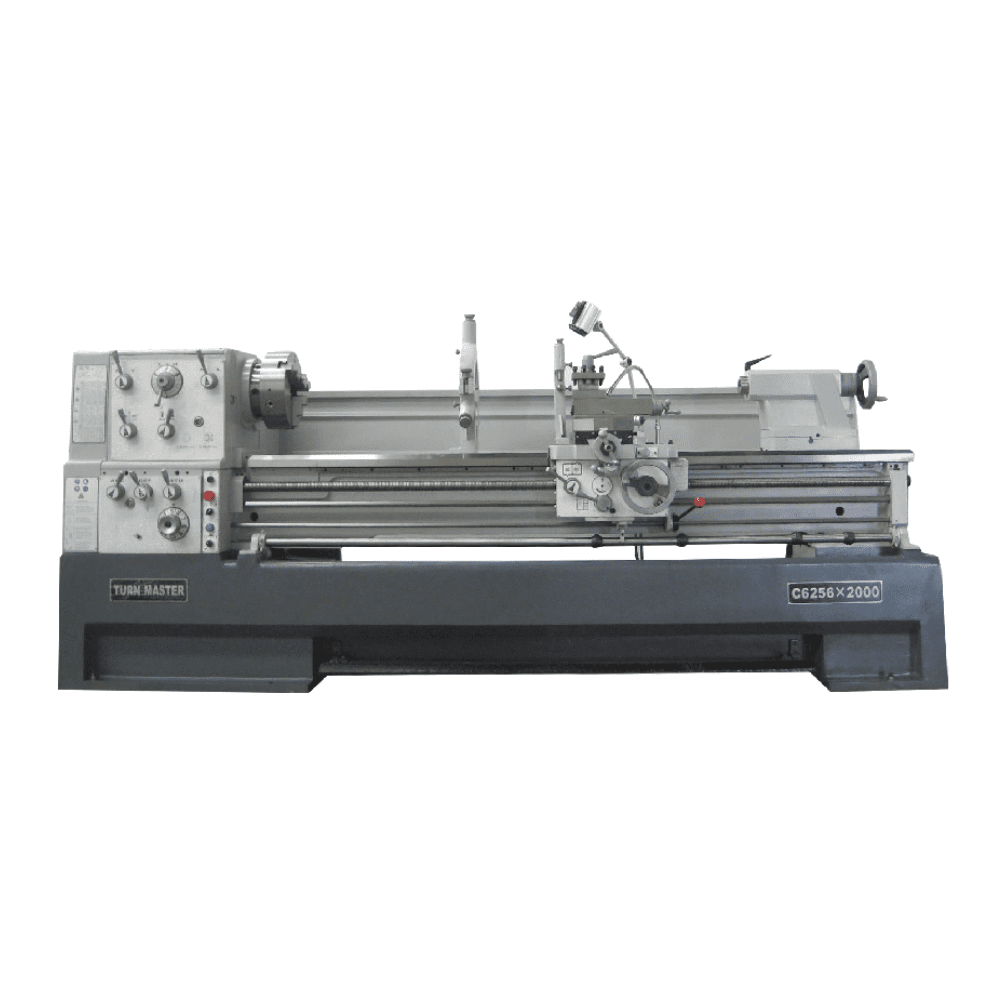

C6256 High Precision Lathe Machine
| Models | C6256 |
| Swing Over Bed | 560mm (22”) |
| Swing Over Cross Slide | 355mm (14”) |
| Swing in Gap Diameter | 785mm (30-7/8”) |
| Distance between centers | 1000mm (40”) |
| 1500mm (60”) | |
| 2000mm (80”) | |
| 3000mm (120”) | |
| Valid length of gap | 170mm (6-11/16”) |
| Width of bed | 350mm (13-13/16”) |
| Spindle nose | D1-8 |
| Spindle bore | 80mm (3-1/8”) |
| Taper of spindle bore | No.7 Morse |
| Range of spindle speed | 12 changes, 25-2000 r/min |
| Compound rest travel | 130mm (5-1/8”) |
| Cross slide travel | 316mm (12-7/16”) |
| Max.section of tool | 25x25mm (1”x1”) |
| Lead screw thread | 6mm or 4T.P.I. |
| Longitudinal feeds range | 35 kinds, 0.059-1.646mm/rev (0.0022”-0.0612”/rev) |
| Cross feed range | 42 kinds, 0.020-0.573mm/rev (0.00048”-0.01354”/rev) |
| Threads Metric Pitches | 47 kinds, 0.2-14mm |
| Threads imperial pitches | 60 kinds, 2-112T.P.I. |
| Threads diametral pitches | 50 kinds, 4-112DP |
| Threads module pitches | 34 kinds, 0.1-7MP |
| Quill diameter | 75mm (2-15/16”) |
| Quill travel | 180mm (7-1/16”) |
| Quill taper | No.5 Morse |
| Main motor power | 7.5Kw (10HP) 3PH |
| Coolant pump power | 0.1Kw (1/8HP) 3PH |
| Overall dimension (LxWxH) | 239x115x146cm |
| 284x114x146cm | |
| 334x115x146cm | |
| Packing size (LxWxH) | 245x119x174cm |
| 290x119x174cm | |
| 340x119x174cm | |
| 440x119x174cm | |
| Net weight | 2195kg |
| 2285kg | |
| 2560kg | |
| 2930kg | |
| Gross weight | 2600kg |
| 2690kg | |
| 2980kg | |
| 3410kg |
