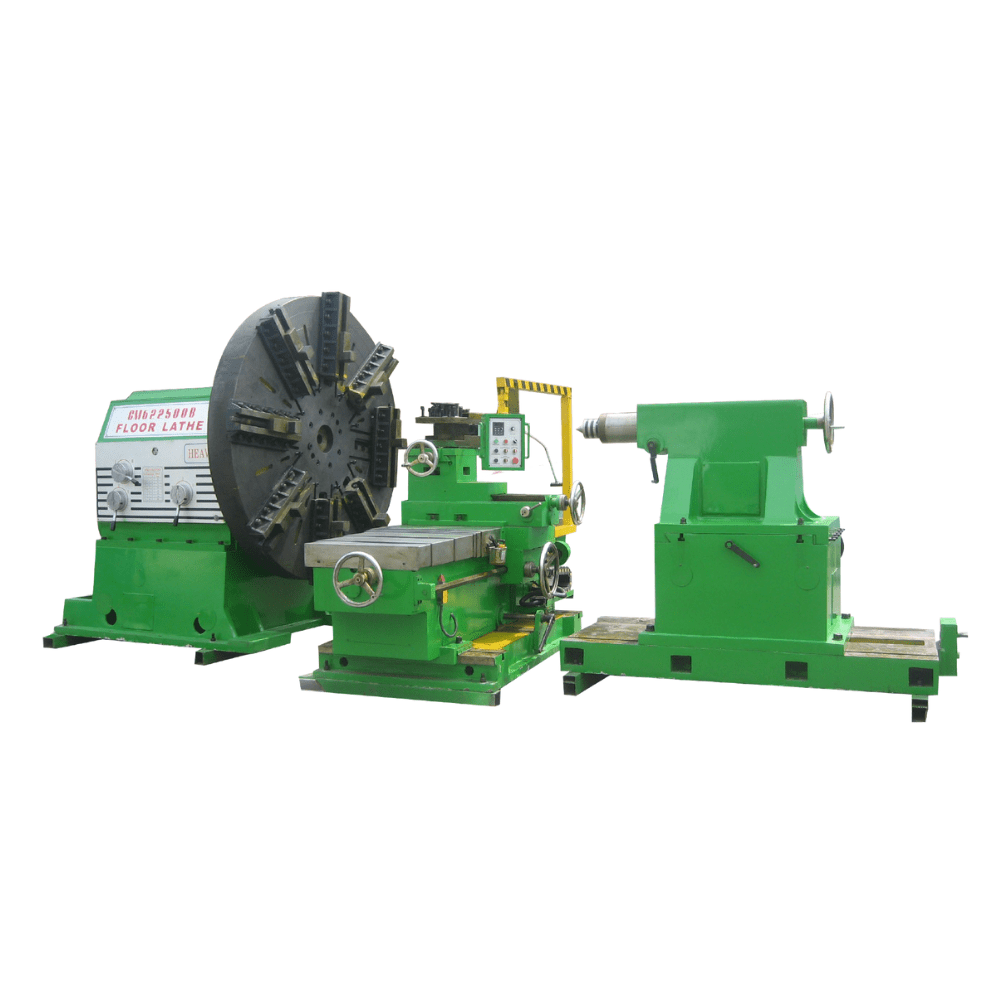

CM622500B, CM623000B Heavy Lathe Machine
| Models | CM622500B | CM623000B |
| Max. Diameter of workpiece | 2500mm | 3000mm |
| Max. Length of workpiece | 1300mm | 1550mm |
| Max. Weight of workpiece | 5T | 5T |
| Diameter of claw | 2000mm | 2500mm |
| Spindle speed | 5-76 r/min | 5-76 r/min |
| Number of spindle spend | 8 | 8 |
| Spindle Bore | 65mm | 65mm |
| Toolpost travel X | 1300mm | 1550mm |
| Toolpost travel Y | 500mm | 500mm |
| Feeding power | 1.5Kw | 1.5Kw |
| Rapid power | 1.5Kw | 1.5Kw |
| Main power | 18.5Kw (6P) | 22Kw (6P) |
| LUB system (Headstock) | Auto pump | |
| LUB system (Body) | Hand pump | |
| Machine Weight | 13T | 15T |
