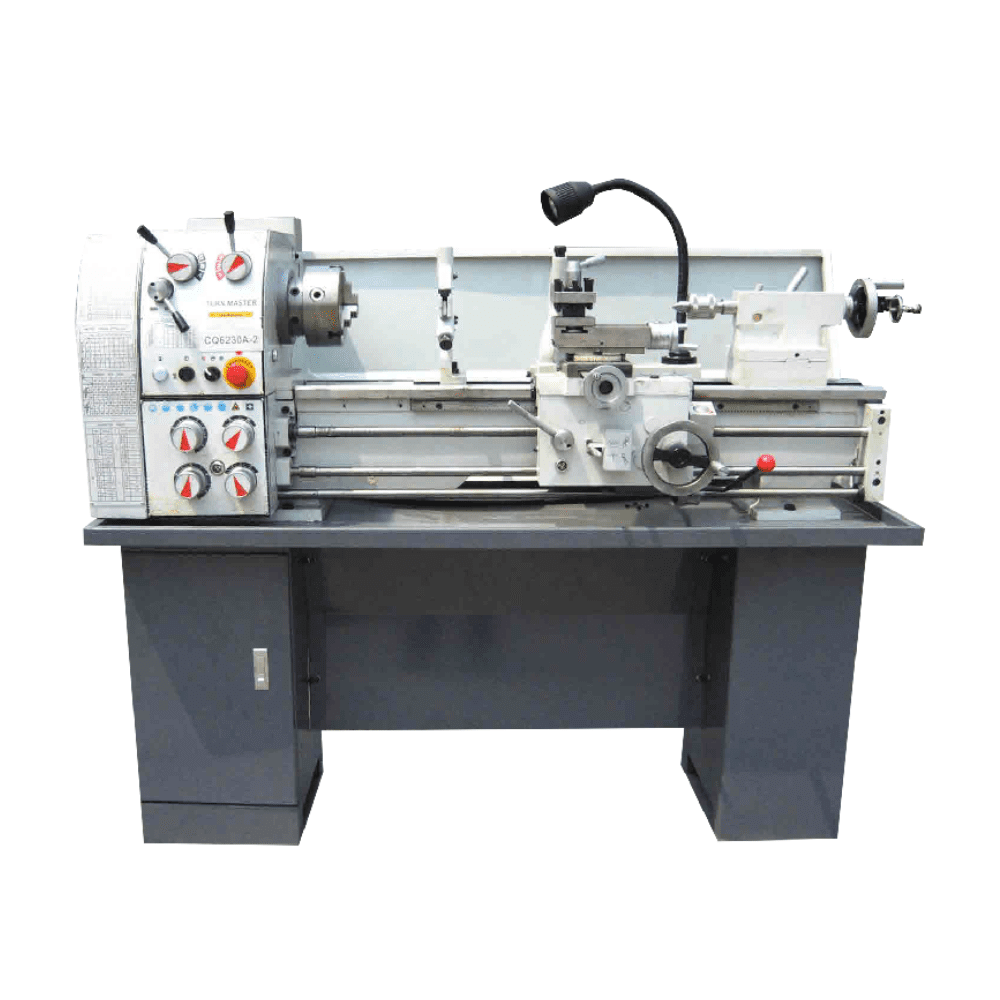

CQ6230A
| Models | CQ6230A |
| Max. swing over bed | Φ310mm |
| Max. swing over cross slide | Φ180mm |
| Max. swing over gap | Φ450mm |
| Distance between centers | 910mm |
| Width of bed | 181mm |
| Spindle bore | 38mm |
| Taper of spindle bore | M.T.5 |
| Range of spindle speeds | 65-1810 (1400)rpm |
| Taper of tailstock | M.T.3 |
| Metric threads can be cut | 0.4-7mm |
| Inch threads can be cut | 4-60TPI |
| Range of longitudinal feeds | 0.0527-1.2912mm/rev |
| Range of cross feeds | 0.011-0.276mm/rev |
| Max. travel of cross slide | 130mm |
| Max. travel of top slide | 75mm |
| Max. travel of tailstock quill | 100mm |
| Motor power | 1.1kw.3PH/1.5kw.1PH |
