This machine is the second generation of end face sharpener developed by our company. It adopts an integral structure, with elegant appearance, scientific structural design and precise sharpening quality. It is an essential sharpening equipment for users in printing, papermaking, woodworking, plastic leather, toilet paper and other industries.
High-frequency quenching provides high strength, wear resistance, and stability, extending machine life.
Self-aligning capabilities provide high-precision, stable, and smooth motion.
Highly durable in all directions, capable of withstanding loads from above, below, and sides.
DUST COVER CONFIGURATION
- It is made of non-woven fabrics and uses high-frequency hot sealing and compression molding.
- It is capable of effective dust proofing, waterproofing, oil proofing, noise reduction, and improving the work environment.
- It features acid and base proofing, as well as corrosion resistance to prolong service life.
- It is free from deformation under impact and shock, featuring a high ratio of extension and compression.

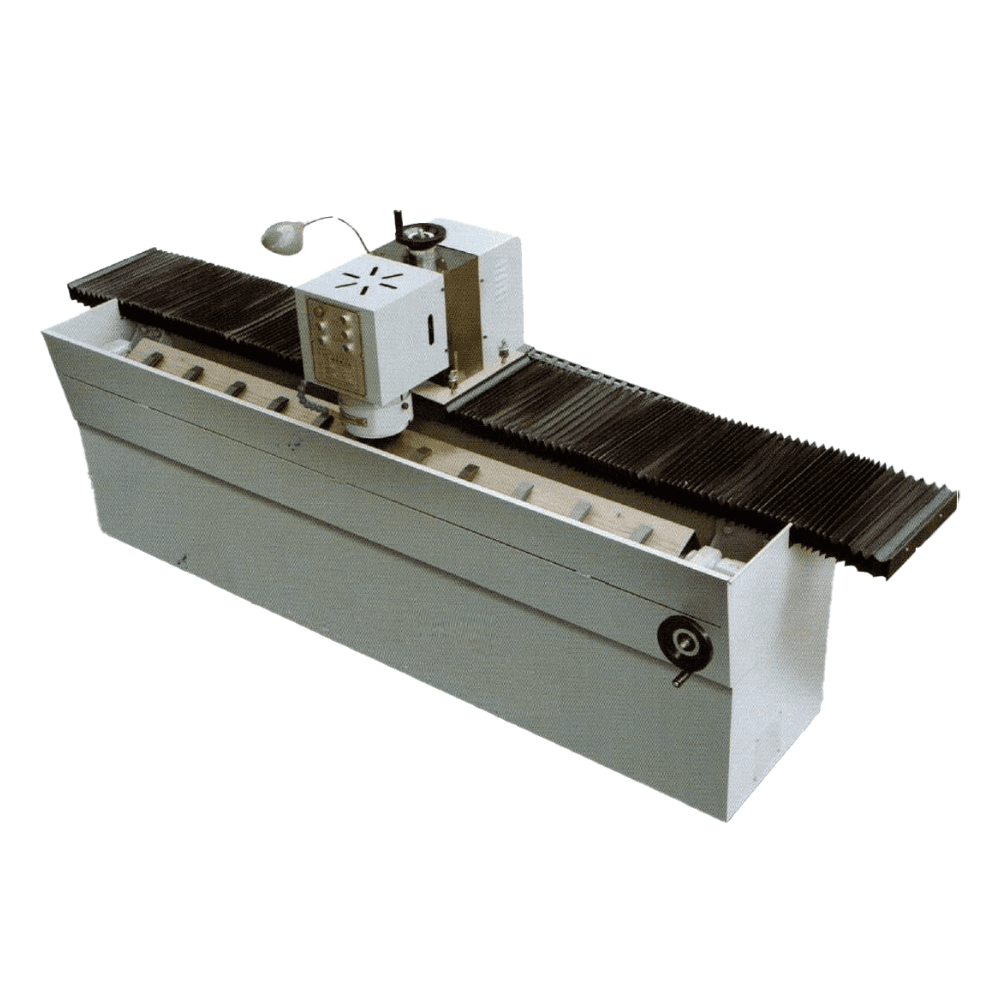

DMSQ-1600ZII Knife Grinding Machine With Accessories
| Models | DMSQ-1600ZII |
| Grinding wheel dimension | Φ200 × Φ100 × 100 mm |
| Maximal knife grinder width | 22° / 180 mm |
| Height (grinding wheel and work bench) | 80–120 mm |
| Work bench rotation angle | 0 ~ ±90° |
| Grinding speed | 1420 r/min |
| Grinding head movement speed | 6 m/min |
| Driving motor power | 0.55 kw |
| Grinding head motor power | 1.5 kw |
| Water pump motor power | 0.125 kw |
| Effective length of sharpener | 1600–8000 mm |
| Machine weight | 1550 kg |
