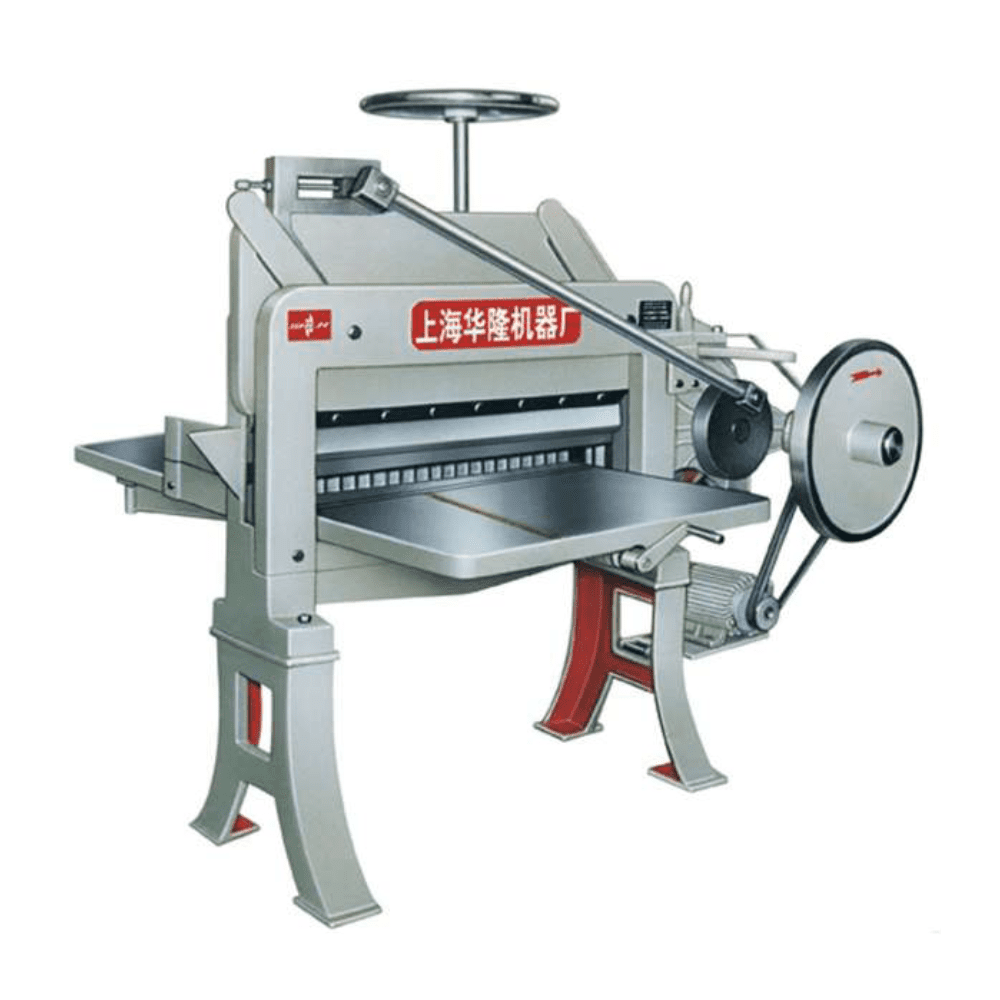

DQ-201 Paper Cutting Machine

The machine is a medium-size single-blade paper cutting machine applicable tor cutting folio paper and different kinds of printed products such as books, magazines, cards, etc.

The machine is simple in construction and convenient in operation and maintenance. Operator can easily master the constructional
features and performance of the machine to raise productivity.

Although paper has to be fed and held down manually, arbitrary hold-down pressure against paper is thus available to avoid the disadvantage resulting form improper hold-down pressure. The paper-cutting blade holder is driven by a motor, but it can also be operated by means of a handle to suit the needs of the location where power supply is not yet available. Its D-feed, pressure paper cutting can proceed. Second, dynamic and electrical use.



DQ-201 Paper Cutting Machine

Models DQ-201
Cutting Width 920mm
Cutting Length 1000mm
Cutting Height 120mm
Cutting Speed 23 times/min
Motor Rated Output 1.5kw
Rated Speed 1420 r/min
Rated Voltage 380 V or 220 V
Overall Dimensions 2110 × 1970 x 1740 mm
Net Weight of Machine 11000 N
