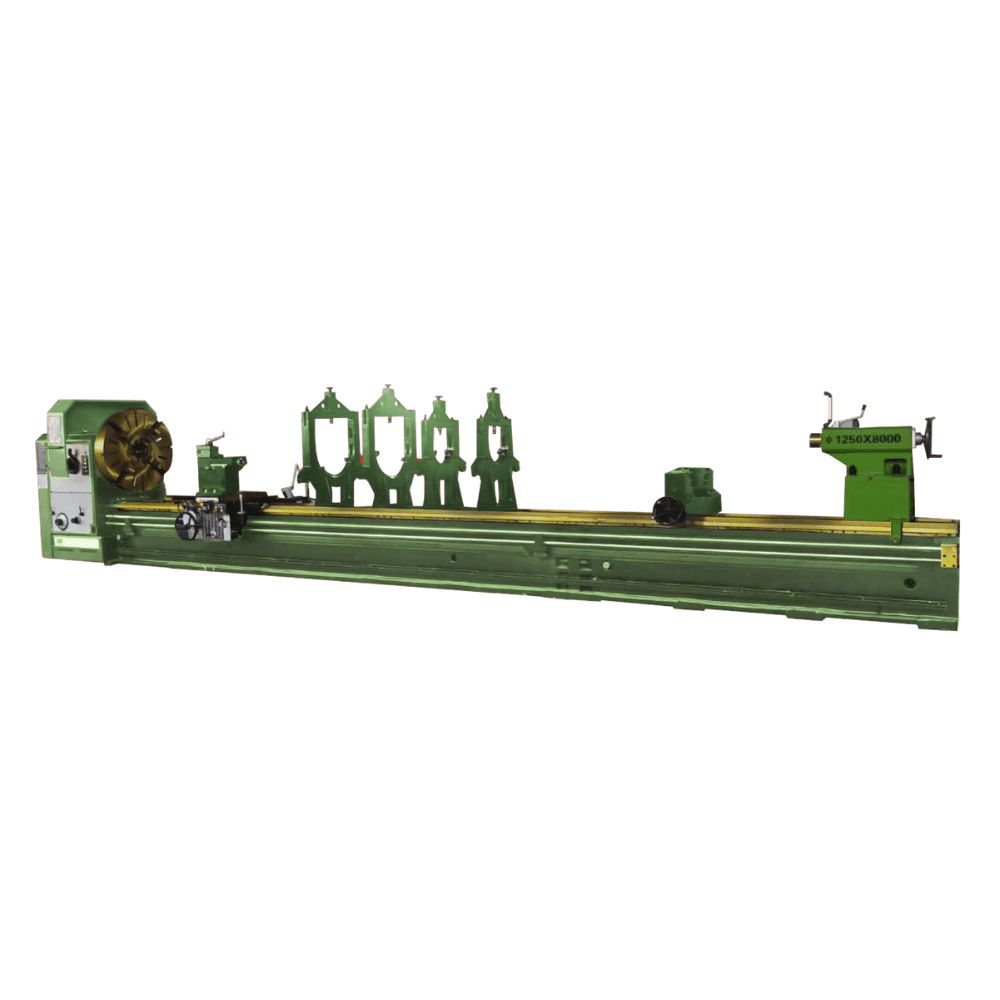

CW62125C x 6000, CW61125C x 8000 Horizontal Lathe Machine
| Models | CW62125C x 6000 | CW61125C x 8000 |
| Swing over bed | Φ1250mm | Φ1250mm |
| Swing over carriage/cross slide | Φ920mm | Φ920mm |
| Max length of workpiece | 6000mm | 8000mm |
| Guide rail width | 700mm | 700mm |
| Spindle bore and nose head | Φ130, A2-11mm | Φ130, A2-11mm |
| Taper spindle hole front cone and top | Φ140, MT6mm | Φ140, MT6mm |
| Spindle speed and range | 5.4-720; 18kinds r/min | 5.4-720; 18kinds r/min |
| Longitudinal feed quantities steps and range | 64 kinds; 0.06-24.3 mm/r | 64 kinds; 0.06-24.3 mm/r |
| Range 1:1 | 0.1-1.52 mm/r | 0.1-1.52 mm/r |
| Range 16:1 | 1.6-24.3 mm/r | 1.6-24.3 mm/r |
| Trace feed range through using gear change | 0.06-0.912 mm/r | 0.06-0.912 mm/r |
| The ratio of transverse feeding and longitudinal feed | 1:2 | 1:2 |
| Rapid move speed of saddle | 4000 mm/min | 4000 mm/min |
| Machine screw pitch | 12(Metric) 1/2” mm | 12(Metric) 1/2” mm |
| Metric thread species, scope | 50 kinds, 1-240 (With 14 kinds of non-standard thread) | 50 kinds, 1-240 (With 14 kinds of non-standard thread) |
| Inch thread species, scope | 26 kinds; 14-1 t.p.i | 26 kinds; 14-1 t.p.i |
| Module thread species, range | 53 kinds; 0.5-120 | 53 kinds; 0.5-120 |
| Diametral pitch screw species, scope | 24 kinds; 28-1 DP | 24 kinds; 28-1 DP |
| Cross travel of lower knife rest | 500mm | 500mm |
| Cross travel of upper knife rest | 200mm | 200mm |
| Sleeve travel | 250mm | 250mm |
| Tailstock sleeve taper | MT6mm | MT6mm |
| Main motor power | 11kw | 11kw |
| Rapid move motor power | 1.1 kw | 1.1 kw |
| Coolant pump power | 90w | 90w |
| Max load capacity | 3500kg | 3500kg |
| Machine size around | 10200x1900x2050 mm | 12200x1900x2050 mm |
| Machine weight around | 9200 kg | 11200 kg |
| Machine Space Required(LxWxH) | 2200x1080x1370mm | 2200x1080x1370mm |
| Packing Case Dimensions(LxWxH) | 2250x1120x1600mm | 2250x1120x1600mm |
| Net Weight | 1645kg | 1645kg |
| Gross Weight | 1910kg | 1910kg |
