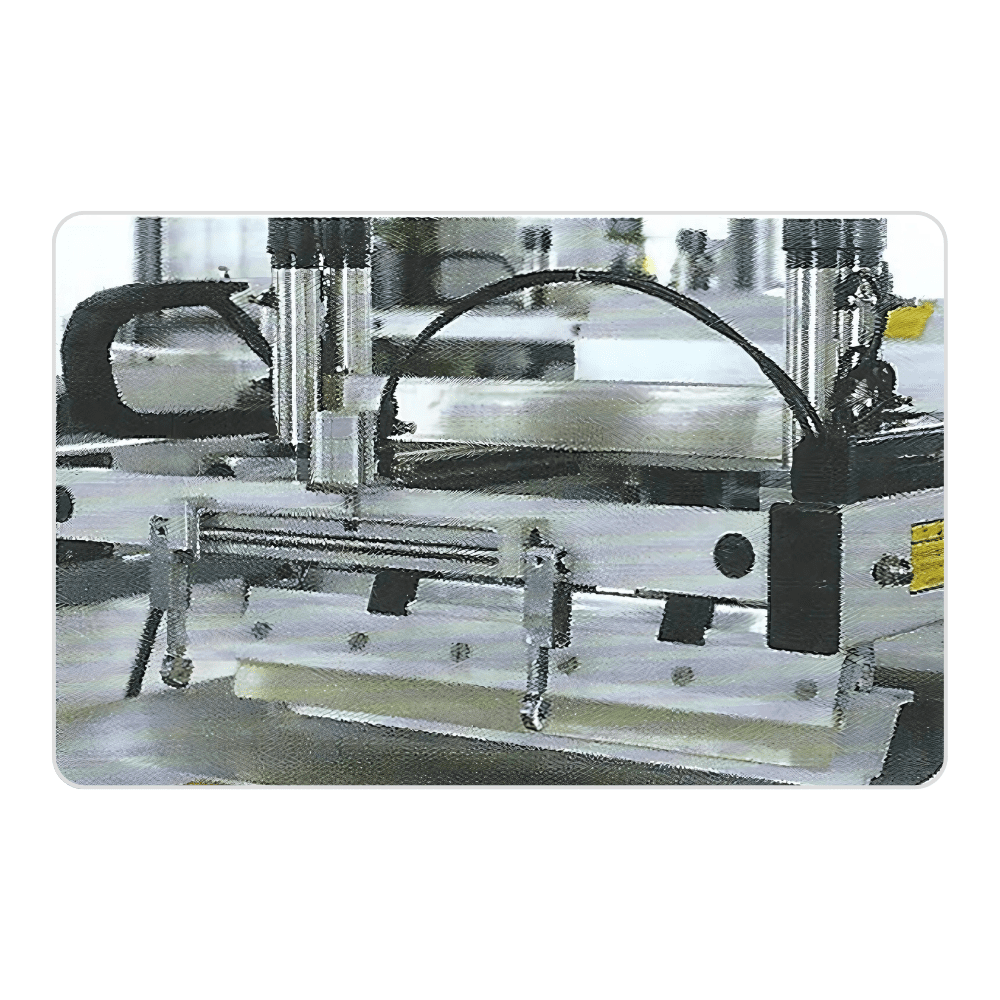

- The printing effect is very excellent by using four air cylinders.
- The height of screen-release device can be quickly adjusted, ensuring printing precision and quality.
- The tension pressure for printing blade and ink-return blade is adjusted separately at infinite speed, which increases the service life and printing quality of halftone.
- Printing stroke and halftone fixed system can be quickly adjusted to meet different printing areas.

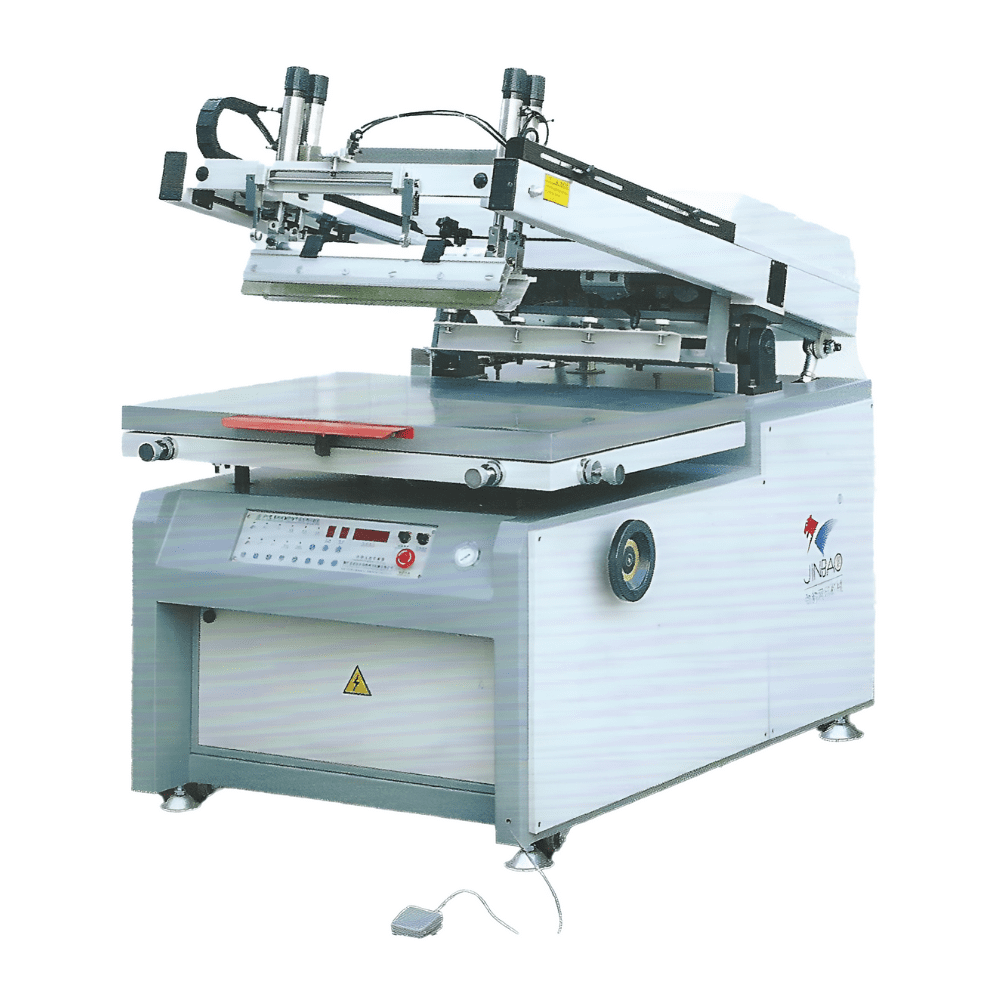

JB-8012G / 6090G Microcomputer Screen Printing Machine
| Models | JB–6090G | JB–8012G |
| Max. printing area | 600 × 900 mm | 800 × 1200 mm |
| Max. dimension of the frame | 950 × 1100 mm | 1250 × 1500 mm |
| Dimensions of the workbench | 800 × 1000 mm | 1000 × 1300 mm |
| Printing speed | 1200 pcs/h | 1000 pcs/h |
| Printing thickness | ~25 mm | ~25 mm |
| Height of instant off-network | 0–15 mm | 0–20 mm |
| Weight | 600 kg | 900 kg |
| Overall dimensions | 1600 × 1200 × 1300 mm | 1900 × 1400 × 1400 mm |
| Installed power meter 3P 380V 50Hz | ||
| Printing motor | 0.75KW | 1.1 KW |
| Printing shaft | 0.75KW | 1.1 KW |
| Wind machine | 1.1 KW | 1.5 KW |
| Total power | 2.6 KW | 3.7 KW |
