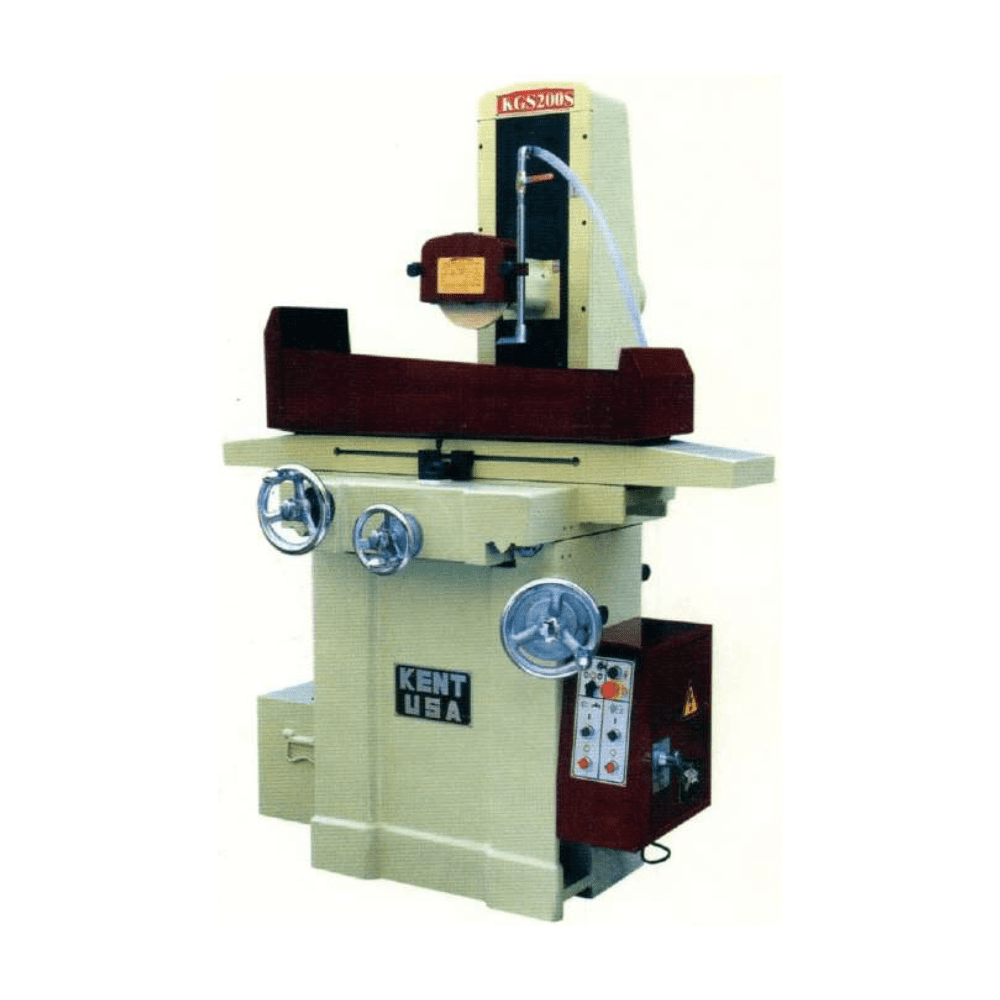

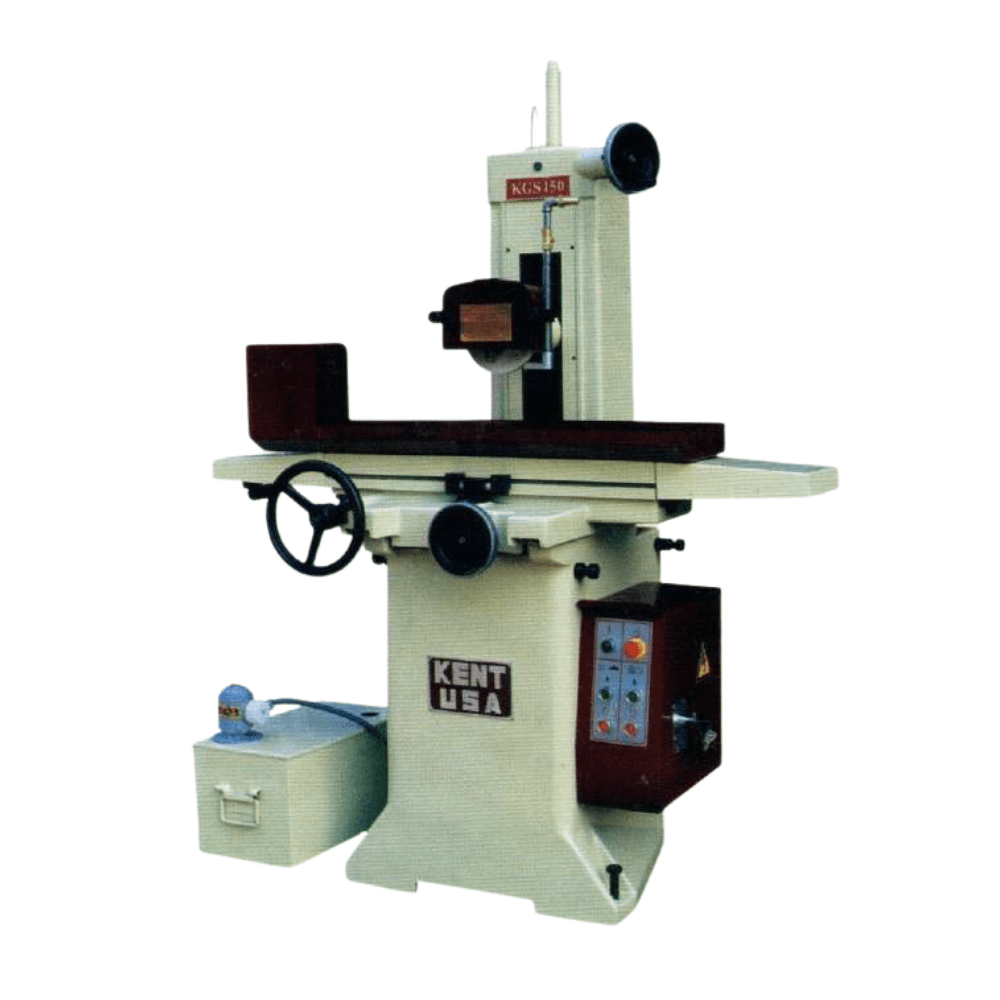

KGS150, KGS200S
| Models | KGS150 | KGS200S |
| Working surface of table | 150×450 (5.9”×17.7”) mm | 160x460(6.3"x 18.1") mm |
| Max. grinding dimension | 150×450 (5.9”×17.7”) mm | 200x 485(7.87"x19.1") mm |
| Max. table travel | 483 (19”) mm | 495(19.4°) mm |
| Max. cross travel | 178 (7”) mm | 220(8.66") mm |
| Tee slot (number × width) | 1×14 (0.55”) mm | 1 × 14(0.55") |
| Table speed | Manual | Manual |
| Distance between table surface and spindle center | 361(14.2") mm | 530(20.9") mm |
| Vertical handwheel (1 grad) | 0.005 (0.0002”) mm | 0.01(0.0002") mm |
| Vertical handwheel (1 rev) | 1.25(0.05") mm | 2(0.05") |
| Automatic downfeed increment | -- | -- |
| Crossfeed handwheel (1 grad) | 0.01 (0.0005") mm | 0.02(0.0005")mm |
| Crossfeed handwheel (1 rev) | 2.5(0.1") mm | 5(0.1") mm |
| Automatic crossfeed of saddle | -- | -- |
| Grinding wheel (OD × T × ID) | 200× 13x 32 mm | 200×25x32 mm |
| Spindle speed (50HZ/60HZ) | 2850/3450 r/min | 2850/3450 r/min |
| Spindle motor | 1.1 kw | 1.5 kw |
| Hydraulic motor | -- | -- |
| Coolant motor | 0.09 kw | 0.09 kw |
| Crossfeed motor | -- | -- |
| Gross weight | 620 kg | 1320 kg |
| Net Weight | 560 kg | 1100 kg |
| Overall dimensions | 1.45x 1.1x 2.1 m | 1.35x 1.5x 1.85 m |
| Packing dimensions (L×W×H) | 1.14x 1.06× 1.9 m | 1.12x 1.48× 2.09 m |
