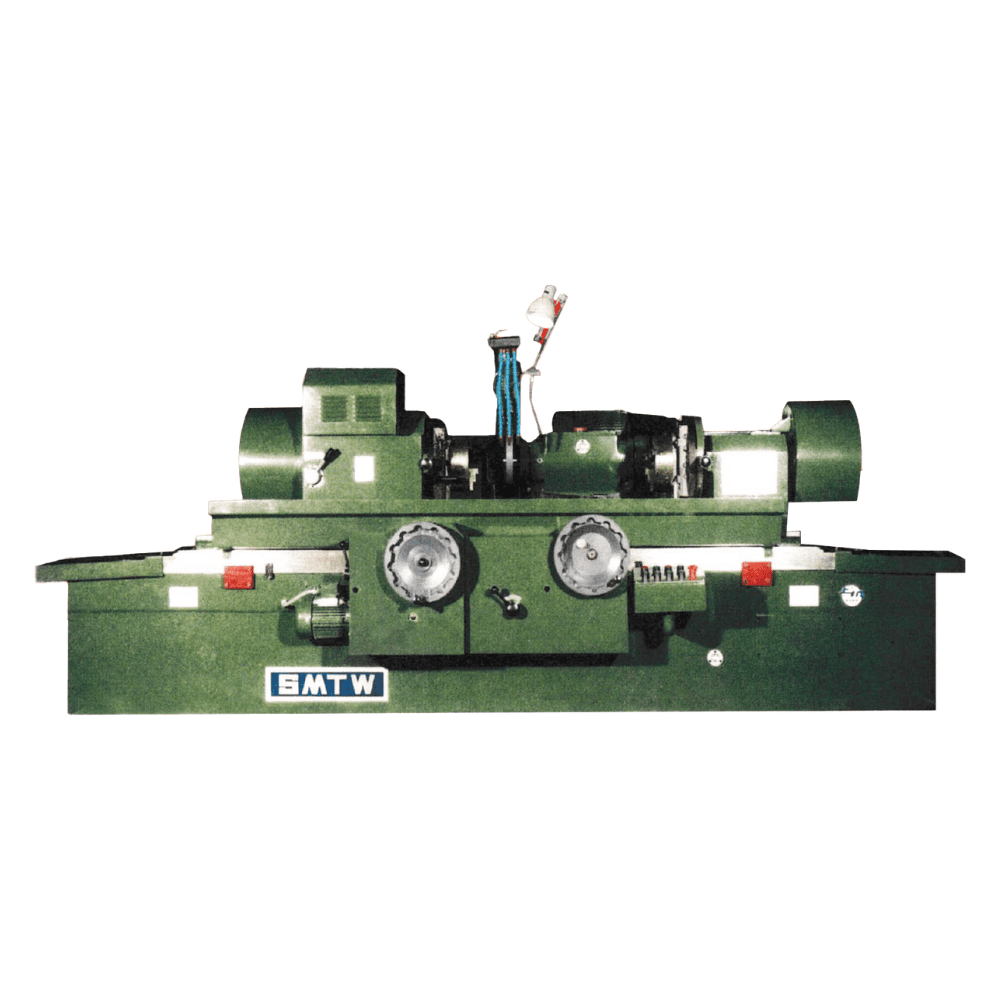

MQ8260B Crankshaft Grinding Machine
| Models | MQ8260B |
| Max. swing over table | 580mm |
| Dia. ground with steady rest | 30-100mm |
| Throw of crankpin | 0-110mm |
| Dia. ground for longitudinal cylindrical grinding | 30-200mm |
| Max. work chucking length | 1500mm (on common chucks) |
| 1390mm (on cross chucks) | |
| Distance between centres | 1600mm |
| Centre height | 300mm |
| Taper of workhead centre | No.5 morse |
| Taper of tailstock centre | No.5 morse |
| Max. weight of work | 120kg |
| General perfomance | |
| Traverse of tailstock sleeve | 30mm |
| Wheel dressing & compensation feed | By hand |
| Auto. intermittent feed | No |
| Auto. plunge-cut feed | No |
| Workhead | |
| Possibility of spindle rotation | Possible |
| Possibility of base plate swivel | Impossible |
| Spindle speed | 25, 50, 100 r/min (for 50Hz) |
| 30, 60, 120 r/min (for 60Hz) | |
| Chuck diameter (3 jaw) | 250mm (common chuck) |
| 200mm (cross chuck) | |
| Wheelhead | |
| Wheel size | 900x40x305mm (Max) |
| 600x40x305 (Worn to) | |
| Spindle speed | 760 r/min (for 50Hz) |
| 760 r/min (for 60Hz) | |
| Max. travel (including rapid travel) | 300mm |
| Max. cross travel on leadscrew | 200mm |
| Rapid travel | 100mm |
| Wheelhead cross travel against the saddle | 70mm (forward) |
| 55mm (backward) | |
| Travel per rev. of handwheel | 1mm |
| Travel per div. of handwheel | 0.005mm |
| Table | |
| Travel per rev. of handwheel | 5mm |
| Max. longitudinal travel | 1600mm (by hand) |
| 1600mm (by power) | |
| Max. swivel of upper table | Clockwise 1°30’ |
| Counter clockwise 1°30’ | |
| Grinding capacity | 580x1600mm |
| Overall dimensions (LxWxH) | 4000x2100x1630mm |
| Net Weight | 6710kg |
