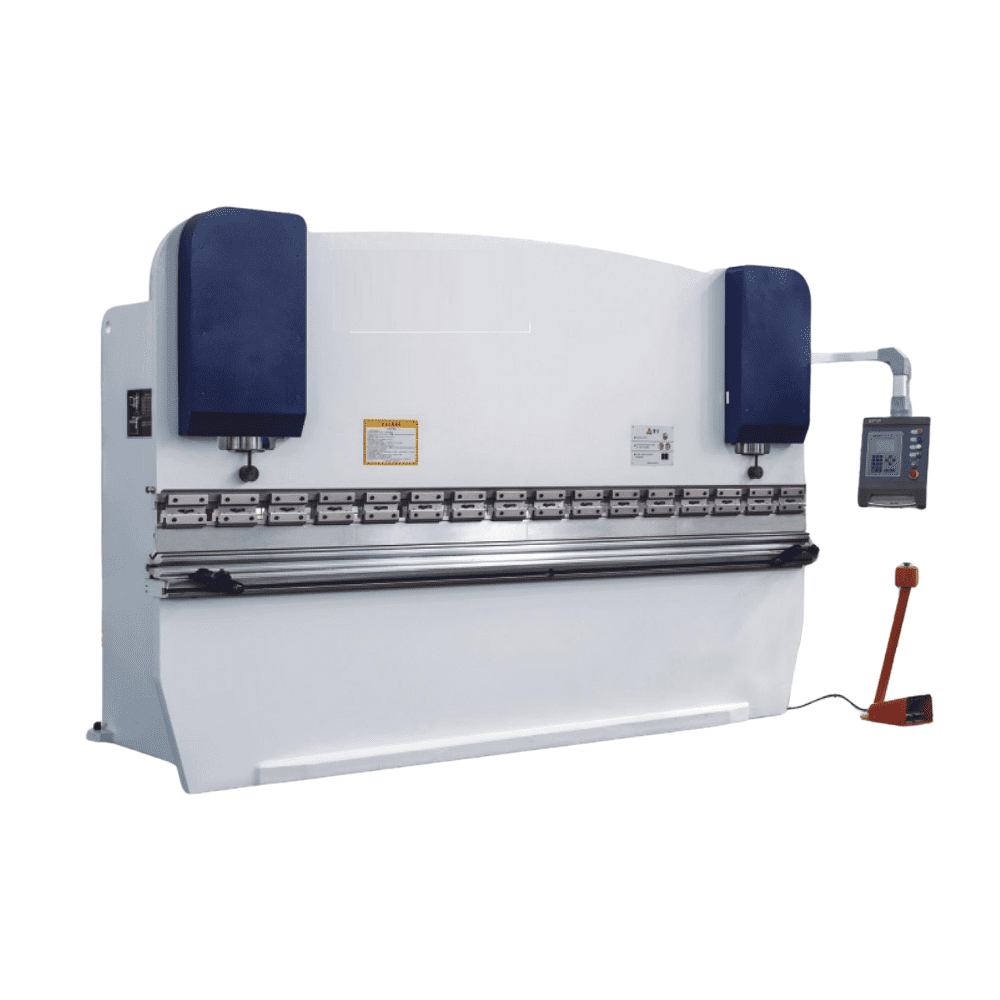

Using steel-welded frame could make sure high strength, high rigidity and high accuracy.
-
Using of mechanical forced synchro system, both sides of sliders move in parallel by synchro axis.
-

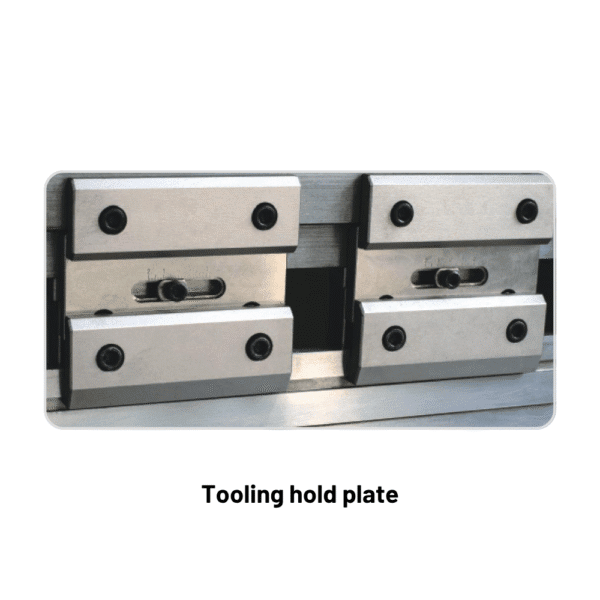

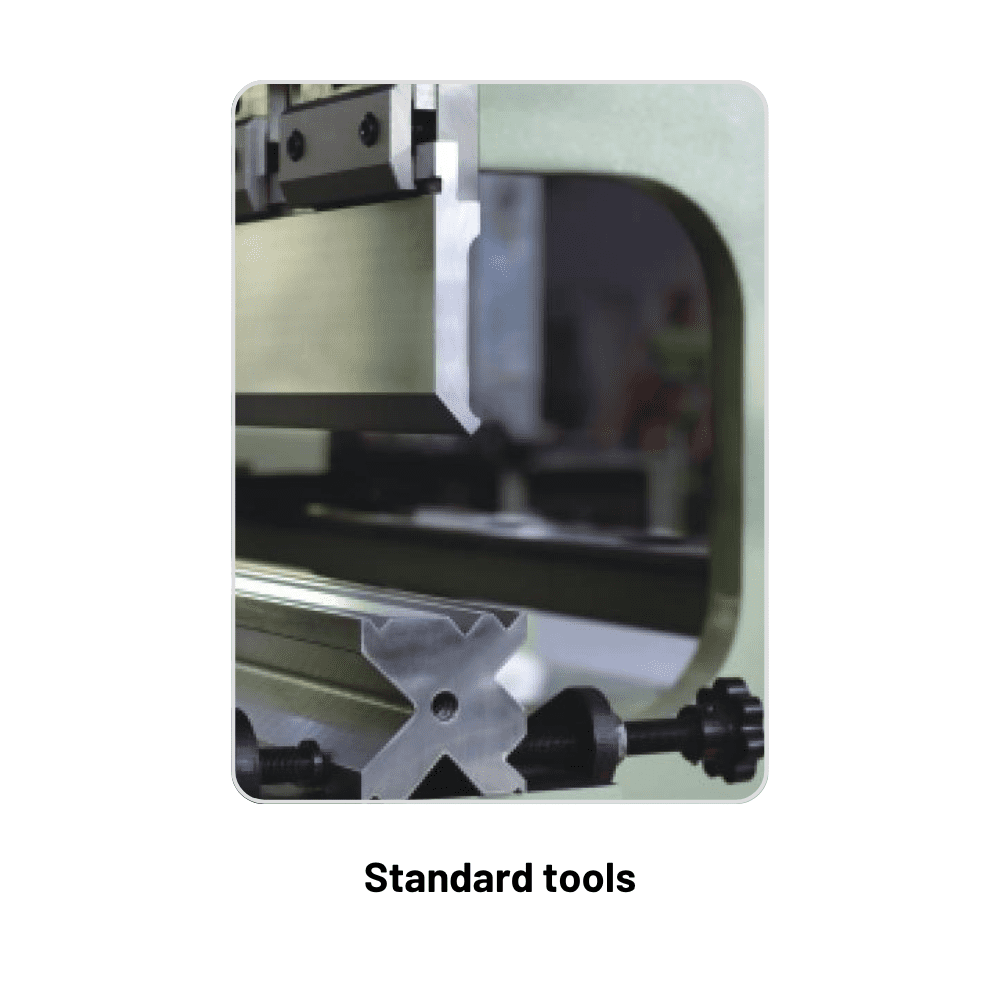

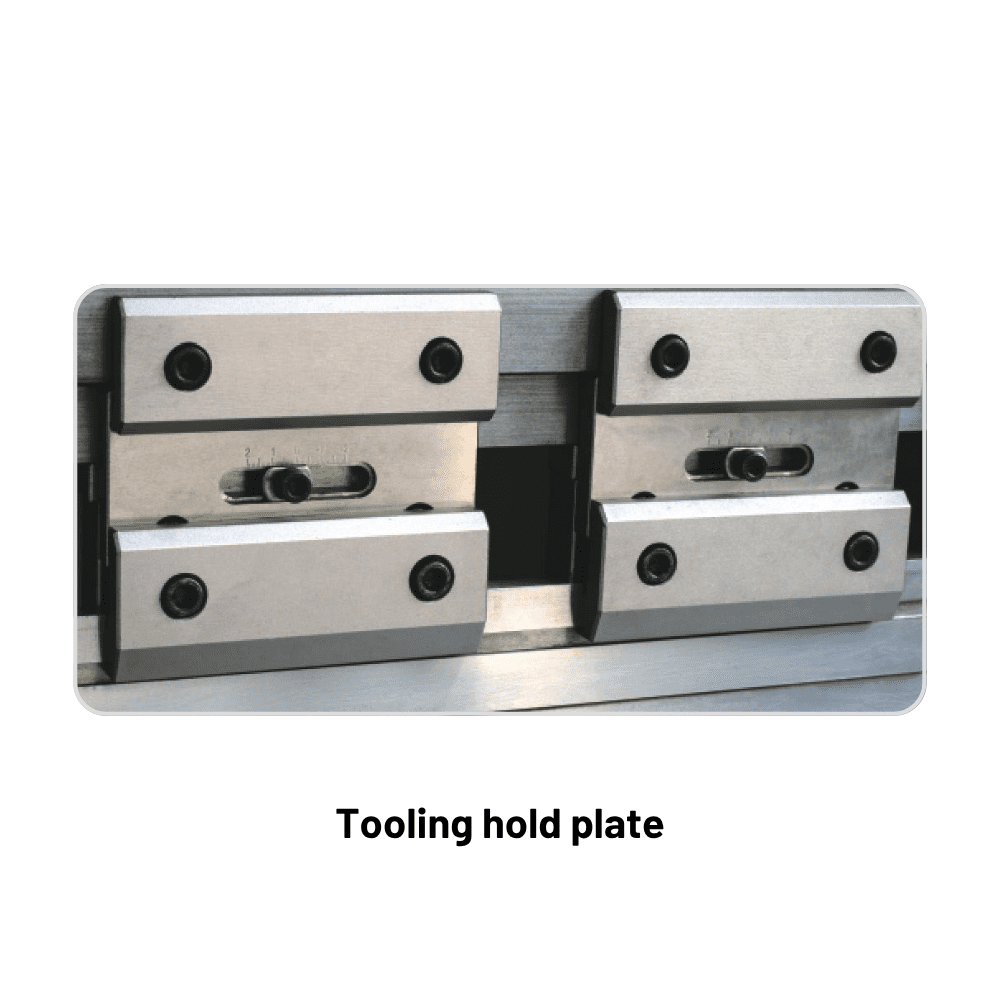

Deflection compensation unit is installed in the upper mould. Upper mold clamping device is an option.
-

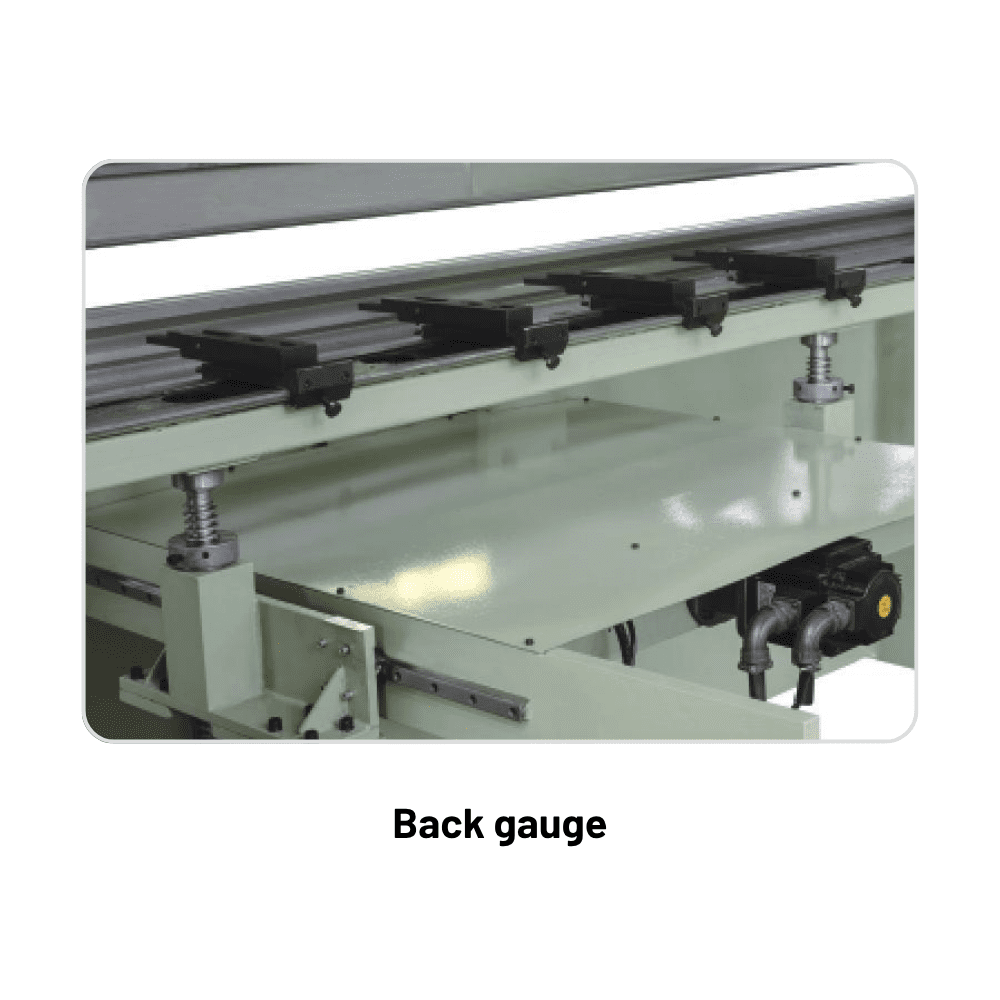

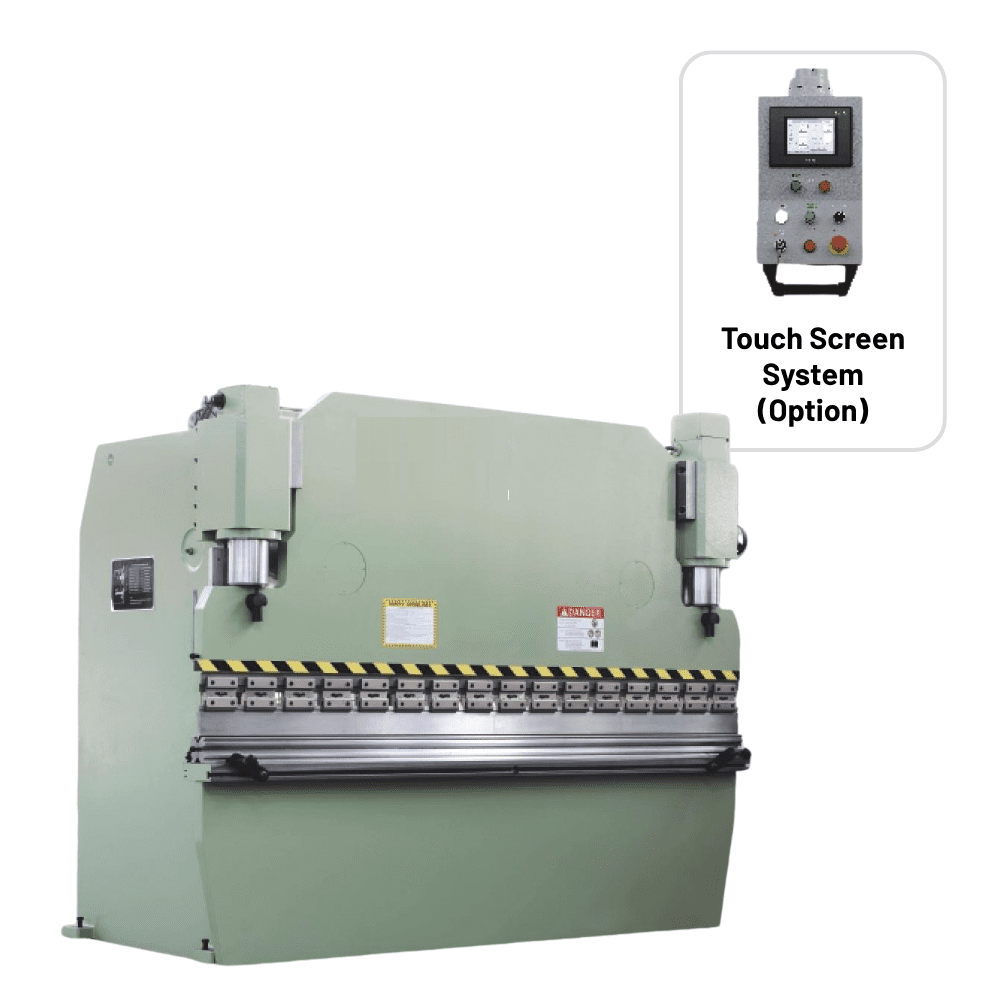

When NC press brake, X-axis backgauge is driven by servo motor, adapted ball-screw and linear guide way.
-
When NC press brake, ram stroke are controlled by servo moto, ti could make sure higher positioning accuracy.
| Model | Nominal Pressure (KN) | Length of Table (mm) | Distance between Housings (mm) | Throat Depth (mm) | Stroke (mm) | Ram Speed (mm/s) - Down | Ram Speed (mm/s) - Press | Ram Speed (mm/s) - Return | Open Height (mm) | Main Motor (KW) | Volume of tank (L) | Weight (kg) | Overall Dimensions (L × W × H)(mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WC67Y-30/1300 | 300 | 1.300 | 1.020 | 200 | 100 | 60 | 10 | 50 | 210 | 3,00 | 77 | 1.780 | 1500×1080×1965 |
| WC67Y-40/2000 | 400 | 2.000 | 1.650 | 200 | 100 | 60 | 10 | 50 | 210 | 4,00 | 145 | 2.780 | 2350×1480×2145 |
| WC67Y-40/2500 | 400 | 2.500 | 2.050 | 200 | 100 | 60 | 10 | 50 | 210 | 4,00 | 145 | 3.200 | 2850×1465×2145 |
| WC67Y-63/2500 | 630 | 2.500 | 2.050 | 250 | 100 | 70 | 10 | 60 | 340 | 55,00 | 240 | 3.500 | 2850×1695×2315 |
| WC67Y-63/3200 | 630 | 3.200 | 2.600 | 250 | 100 | 70 | 10 | 60 | 340 | 55,00 | 240 | 3.700 | 3400×1725×2315 |
| WC67Y-80/2500 | 800 | 2.500 | 2.050 | 250 | 100 | 70 | 10 | 60 | 340 | 75,00 | 240 | 5.200 | 2850×1725×2305 |
| WC67Y-80/3200 | 800 | 3.200 | 2.600 | 250 | 100 | 70 | 10 | 60 | 340 | 75,00 | 240 | 5.600 | 3400×1725×2305 |
| WC67Y-100/2500 | 1.000 | 2.500 | 2.050 | 320 | 150 | 70 | 10 | 60 | 385 | 75,00 | 240 | 6.200 | 2850×1820×2436 |
| WC67Y-100/3200 | 1.000 | 3.200 | 2.600 | 320 | 150 | 70 | 10 | 60 | 385 | 75,00 | 240 | 6.800 | 3400×1820×2436 |
| WC67Y-125/2500 | 1.250 | 2.500 | 2.050 | 430 | 150 | 70 | 10 | 65 | 415 | 75,00 | 280 | 7.500 | 2850×1900×2645 |
| WC67Y-125/3200 | 1.250 | 3.200 | 2.600 | 430 | 150 | 70 | 10 | 65 | 415 | 75,00 | 280 | 8.000 | 3400×1900×2645 |
| WC67Y-125/4000 | 1.250 | 4.000 | 3.100 | 430 | 150 | 70 | 10 | 65 | 415 | 11,00 | 280 | 8.900 | 4350×1900×2645 |
| WC67Y-160/3200 | 1.600 | 3.200 | 2.600 | 430 | 200 | 65 | 10 | 65 | 480 | 11,00 | 280 | 11.000 | 3400×2050×2900 |
| WC67Y-160/4000 | 1.600 | 4.000 | 3.100 | 430 | 200 | 65 | 10 | 65 | 480 | 11,00 | 280 | 13.000 | 4350×2050×2900 |
| WC67Y-160/5000 | 1.600 | 5.000 | 4.100 | 430 | 200 | 65 | 10 | 65 | 480 | 11,00 | 280 | 14.300 | 5300×2050×2900 |
| WC67Y-200/3200 | 2.000 | 3.200 | 2.600 | 430 | 200 | 60 | 10 | 65 | 480 | 15,00 | 370 | 12.500 | 3400×2145×2780 |
| WC67Y-200/4000 | 2.000 | 4.000 | 3.100 | 430 | 200 | 60 | 10 | 65 | 480 | 15,00 | 370 | 13.800 | 4350×2145×2780 |
| WC67Y-200/5000 | 2.000 | 5.000 | 4.100 | 430 | 200 | 60 | 10 | 65 | 480 | 185,00 | 370 | 15.000 | 5300×2145×2780 |
| WC67Y-250/3200 | 2.500 | 3.200 | 2.600 | 450 | 250 | 70 | 10 | 70 | 560 | 22,00 | 850 | 17.000 | 3400×2350×3470 |
| WC67Y-250/4000 | 2.500 | 4.000 | 3.100 | 450 | 250 | 70 | 10 | 70 | 560 | 22,00 | 850 | 19.800 | 4350×2350×3470 |
| WC67Y-250/5000 | 2.500 | 5.000 | 4.100 | 450 | 250 | 70 | 10 | 70 | 560 | 22,00 | 850 | 22.000 | 5300×2350×3470 |
| WC67Y-300/3200 | 3.000 | 3.200 | 2.600 | 450 | 250 | 70 | 10 | 70 | 560 | 22,00 | 850 | 20.000 | 3400×2560×3570 |
| WC67Y-300/4000 | 3.000 | 4.000 | 3.100 | 450 | 250 | 70 | 10 | 70 | 560 | 30,00 | 950 | 23.000 | 4350×2560×3570 |
| WC67Y-300/5000 | 3.000 | 5.000 | 4.100 | 450 | 250 | 70 | 10 | 70 | 560 | 30,00 | 950 | 26.500 | 5300×2560×3570 |
| WC67Y-400/3200 | 4.000 | 3.200 | 2.600 | 470 | 320 | 70 | 10 | 70 | 600 | 30,00 | 950 | 25.000 | 3400×2560×4500 |
| WC67Y-400/4000 | 4.000 | 4.000 | 3.100 | 470 | 320 | 70 | 10 | 70 | 600 | 30,00 | 950 | 29.400 | 5080×2560×4500 |
| WC67Y-400/5000 | 4.000 | 5.000 | 4.100 | 470 | 320 | 70 | 10 | 70 | 600 | 30,00 | 950 | 34.100 | 6080×2560×5100 |
