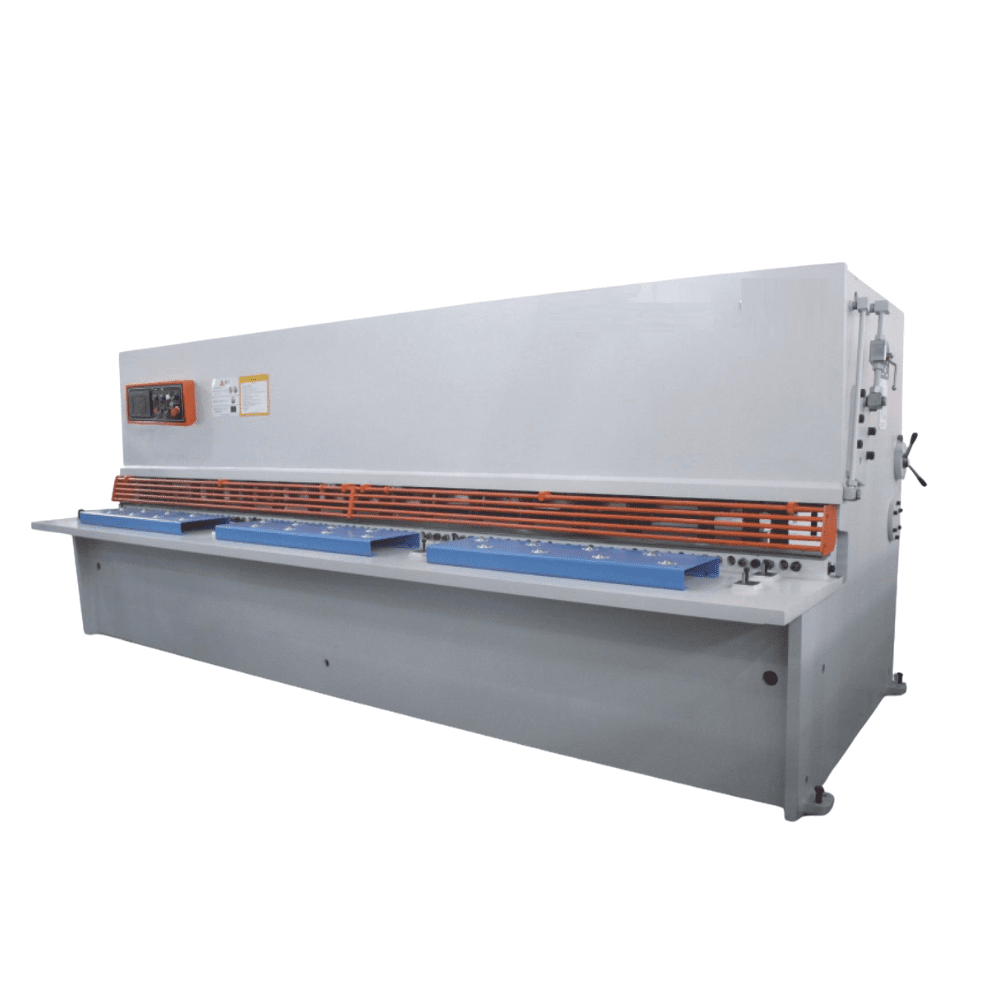

Swing beam type top blade, hydraulic driven, stable and reliable, easy to operate
Blade gap can be adjusted accurately and rapidly, Top blade stroke can be adjusted stepless to improve cutting speed.
Matching variety of back gauges and blade gaps which is controlled by CNC system.
| Model | Shear Size (T×W) (mm) | Shear Angle | Clamps | Strokes (min⁻¹) | Back Gauge Range (mm) | Main Motor (kW) | Oil Tank Volume (L) | Weight (kg) | Overall Dimensions (L×W×H) (mm) |
|---|---|---|---|---|---|---|---|---|---|
| QC12Y-4×2000 | 4×2000 | 1°30′ | 10 | 20 | 20-600 | 75,00 | 220 | 3.800 | 2590×1610×1715 |
| QC12Y-4×2500 | 4×2500 | 1°30′ | 13 | 18 | 20-600 | 75,00 | 247 | 4.280 | 3140×1610×1830 |
| QC12Y-4×4000 | 4×4000 | 1°30′ | 18 | 20 | 20-600 | 75,00 | 247 | 7.550 | 4640×1610×1830 |
| QC12Y-6×2000 | 6×2000 | 1°30′ | 13 | 18 | 20-600 | 75,00 | 247 | 3.950 | 2590×1610×1715 |
| QC12Y-6×2500 | 6×2500 | 1°30′ | 18 | 16 | 20-600 | 75,00 | 247 | 5.280 | 3140×1610×1630 |
| QC12Y-6×3200 | 6×3200 | 1°30′ | 14 | 14 | 20-600 | 11,00 | 247 | 6.260 | 3840×1610×1830 |
| QC12Y-6×4000 | 6×4000 | 1°30′ | 18 | 12 | 20-600 | 11,00 | 247 | 8.200 | 4640×1610×1830 |
| QC12Y-6×5000 | 6×5000 | 1°30′ | 22 | 7 | 20-800 | 15,00 | 588 | 15.800 | 5770×2125×2305 |
| QC12Y-6×6000 | 6×6000 | 1°30′ | 28 | 7 | 20-800 | 15,00 | 620 | 19.300 | 6770×2520×2505 |
| QC12Y-8×2500 | 8×2500 | 1°30′ | 14 | 12 | 20-600 | 11,00 | 247 | 6.390 | 3840×1610×1630 |
| QC12Y-8×3200 | 8×3200 | 1°30′ | 14 | 10 | 20-600 | 11,00 | 247 | 7.130 | 3840×1610×1660 |
| QC12Y-8×4000 | 8×4000 | 1°30′ | 14 | 8 | 20-600 | 11,00 | 247 | 8.960 | 5000×2300×2360 |
| QC12Y-8×6000 | 8×6000 | 1°30′ | 18 | 5 | 20-600 | 15,00 | 580 | 13.100 | 6770×2300×2400 |
| QC12Y-8×8000 | 8×8000 | 1°30′ | 25 | 3 | 25-800 | 30,00 | 800 | 19.700 | 8770×2648×2810 |
| QC12Y-10×2500 | 10×2500 | 1°30′ | 14 | 10 | 20-600 | 11,00 | 247 | 7.500 | 3840×1610×1660 |
| QC12Y-10×3200 | 10×3200 | 1°30′ | 14 | 8 | 20-600 | 11,00 | 247 | 9.470 | 4500×1629×2000 |
| QC12Y-10×4000 | 10×4000 | 1°54′ | 18 | 7 | 20-800 | 15,00 | 320 | 11.750 | 4850×1920×2090 |
| QC12Y-12×2500 | 12×2500 | 1°30′ | 14 | 9 | 25-800 | 15,00 | 320 | 10.050 | 3900×2000×2130 |
| QC12Y-12×3200 | 12×3200 | 1°30′ | 14 | 8 | 25-800 | 15,00 | 360 | 12.000 | 4450×2050×2130 |
| QC12Y-12×4000 | 12×4000 | 1°30′ | 18 | 7 | 25-800 | 185,00 | 715 | 14.800 | 5050×2200×2200 |
| QC12Y-16×2500 | 16×2500 | 1°30′ | 12 | 8 | 25-800 | 185,00 | 620 | 11.500 | 3850×2020×2130 |
| QC12Y-16×3200 | 16×3200 | 1°30′ | 12 | 7 | 25-800 | 22,00 | 715 | 14.200 | 4350×2120×2300 |
| QC12Y-16×4000 | 16×4000 | 1°30′ | 16 | 6 | 25-800 | 30,00 | 715 | 16.900 | 4950×2250×2300 |
| QC12Y-20×2500 | 20×2500 | 2°30′ | 12 | 7 | 25-800 | 30,00 | 746 | 15.000 | 3450×2075×2190 |
| QC12Y-20×3200 | 20×3200 | 2°30′ | 12 | 6 | 25-800 | 37,00 | 746 | 15.500 | 4300×2170×2300 |
| QC12Y-20×4000 | 20×4000 | 2°30′ | 12 | 5 | 30-1000 | 37,00 | 1.324 | 24.000 | 4980×2380×2760 |
| QC12Y-25×2500 | 25×2500 | 2°30′ | 12 | 5 | 40-800 | 45,00 | 840 | 16.750 | 3460×2300×2696 |
