- Driving system: efficient flat envelope and ring scroll driving system with big capacity, low noise, and low energy consuming.

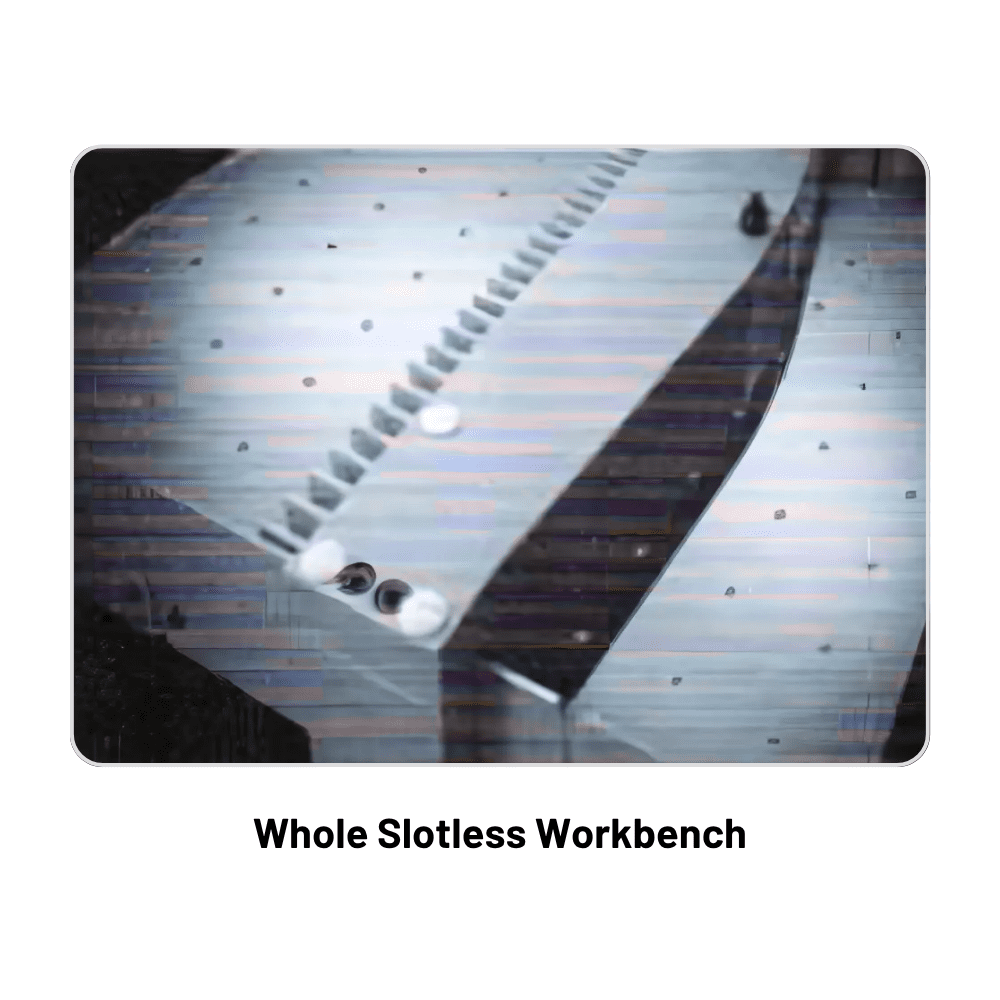

- Whole Slotless Workbench: Slotless dual rail positioning and air bed workbench chrome coated, stainless, stiff, hard to deformation. Vertical and parallel adjustment system of pushing paper device is separated, simple and accurate. it is slotless, chrome coated, stainless, stiff, hard to deformation.

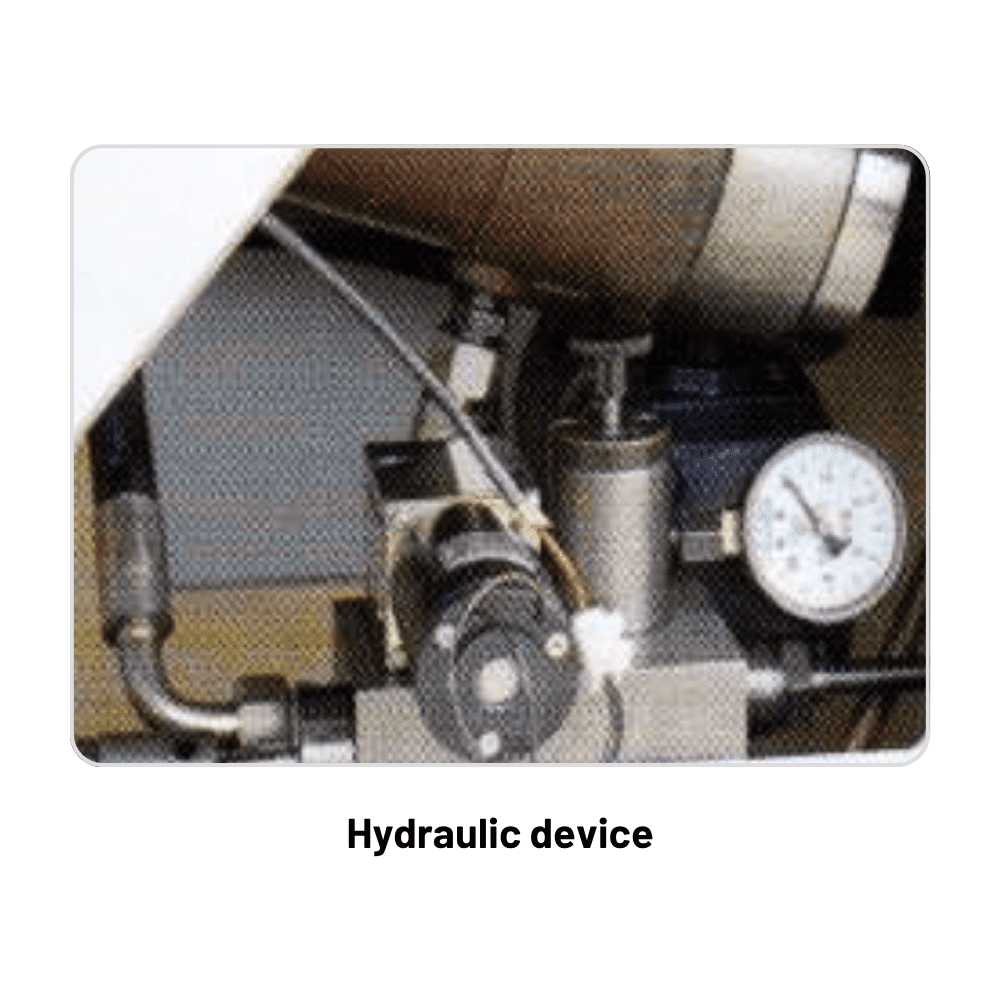

- Hydraulic System: Adopts Italian gear up and blower ram, all the hydraulic components are ISO standards.

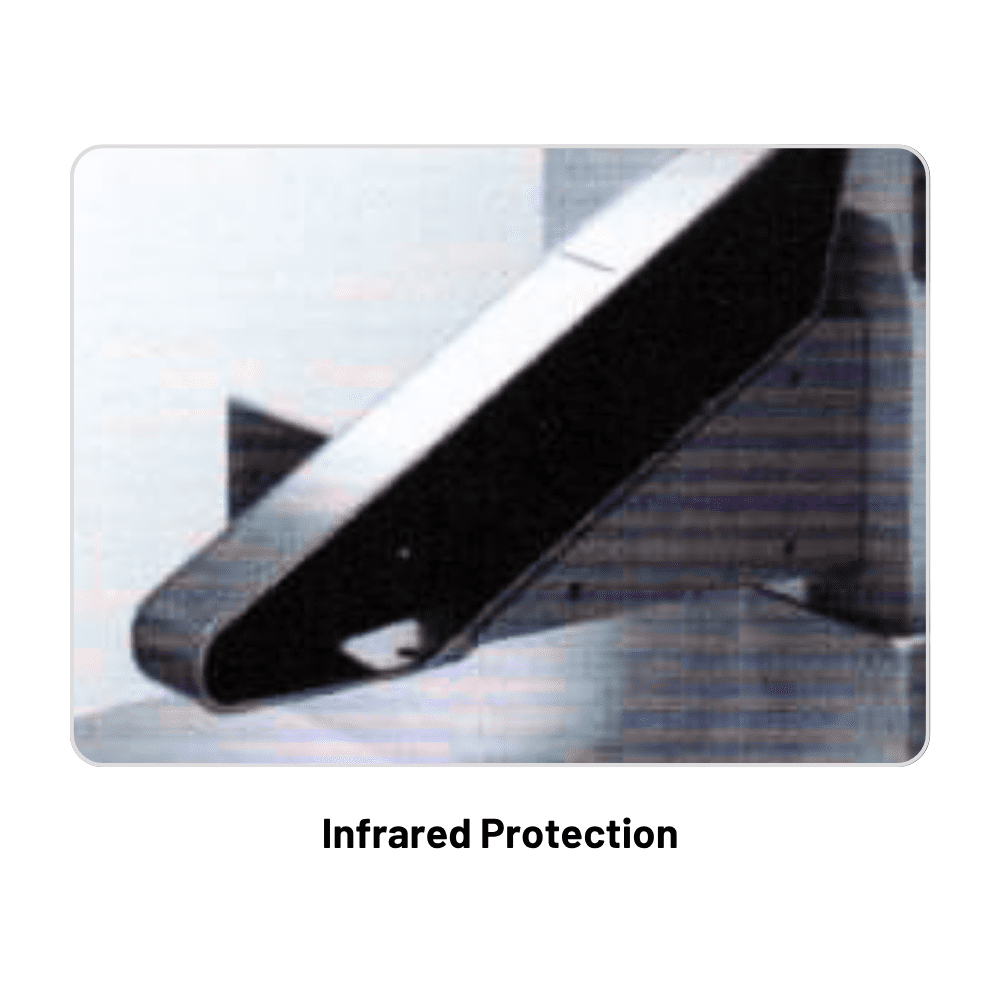

- Infrared Protection Security System: Infrared protection, device, cuter block security system, overload protection and two hands link device, etc. The infrared protection system conforms to the European CE standards.

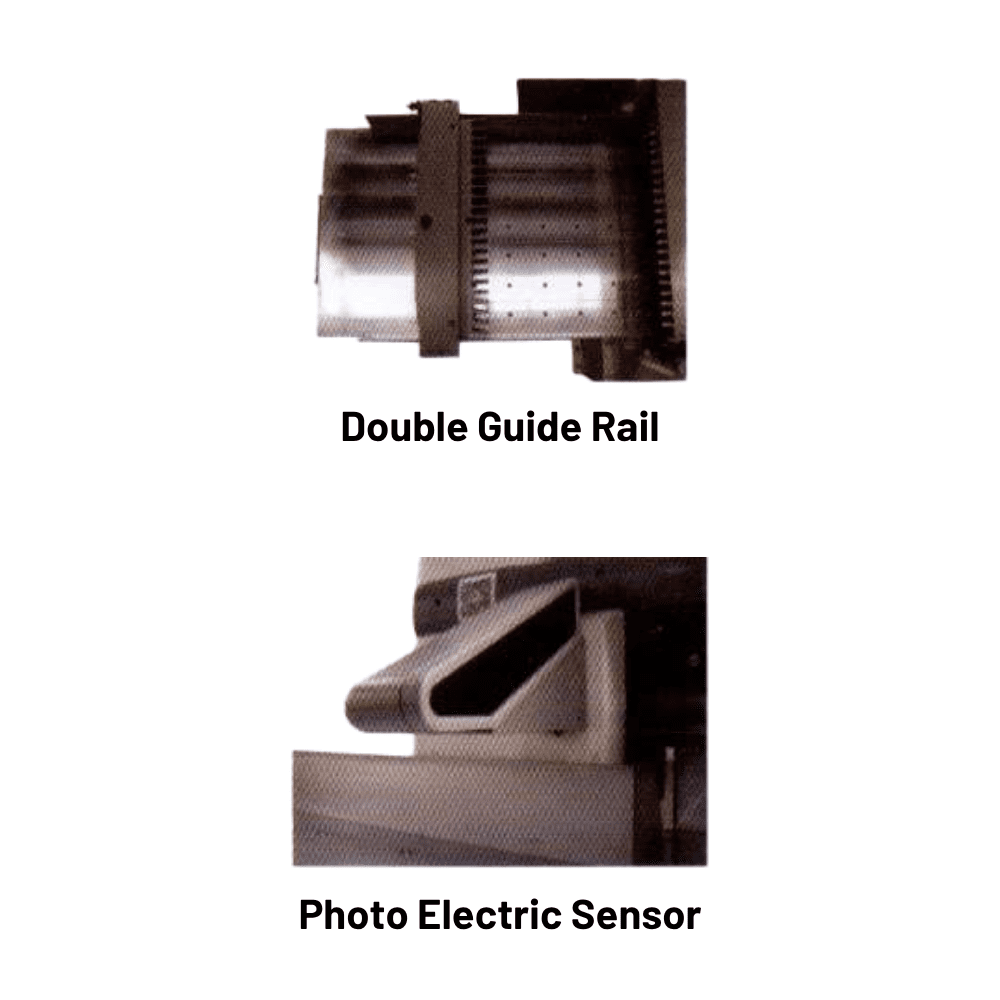

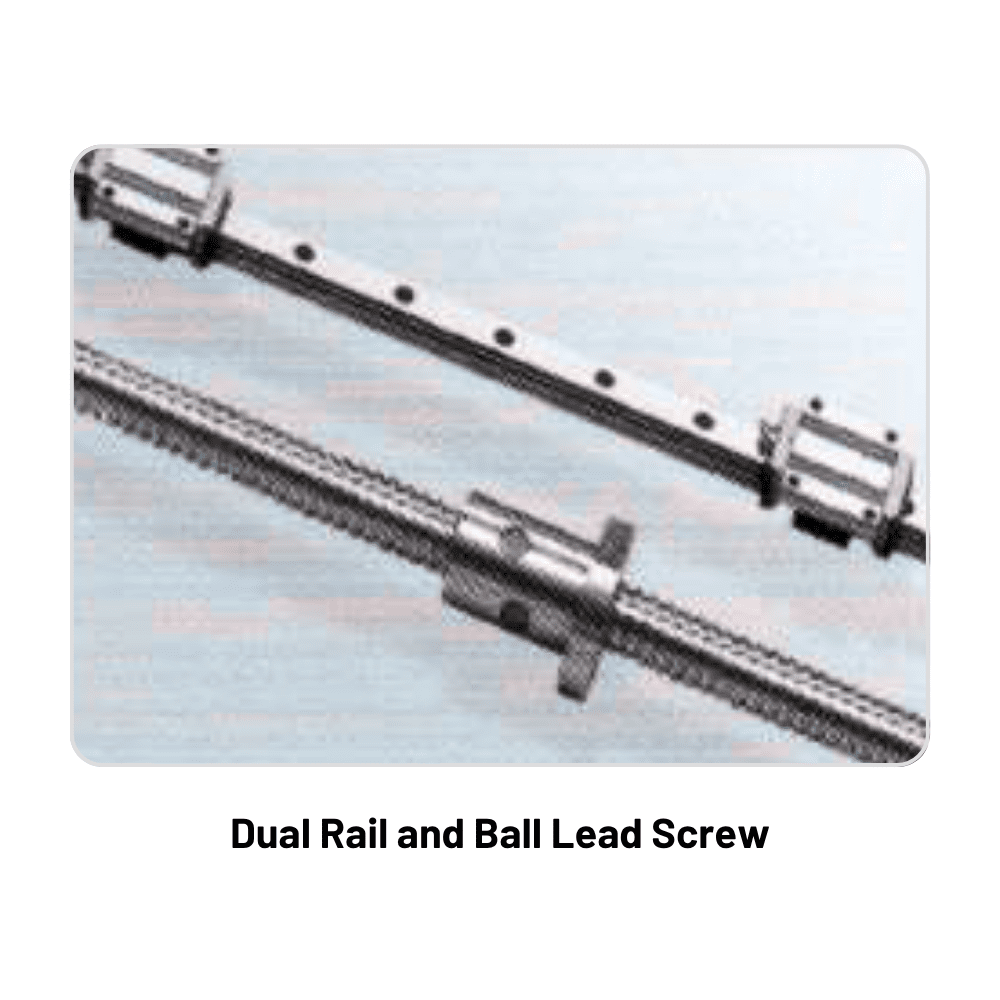

- Dual Rail and Ball Lead Screw: Ball lead screw together with dual rail makes the machine run smoothly and lightly and makes less noise and accurate positioning.

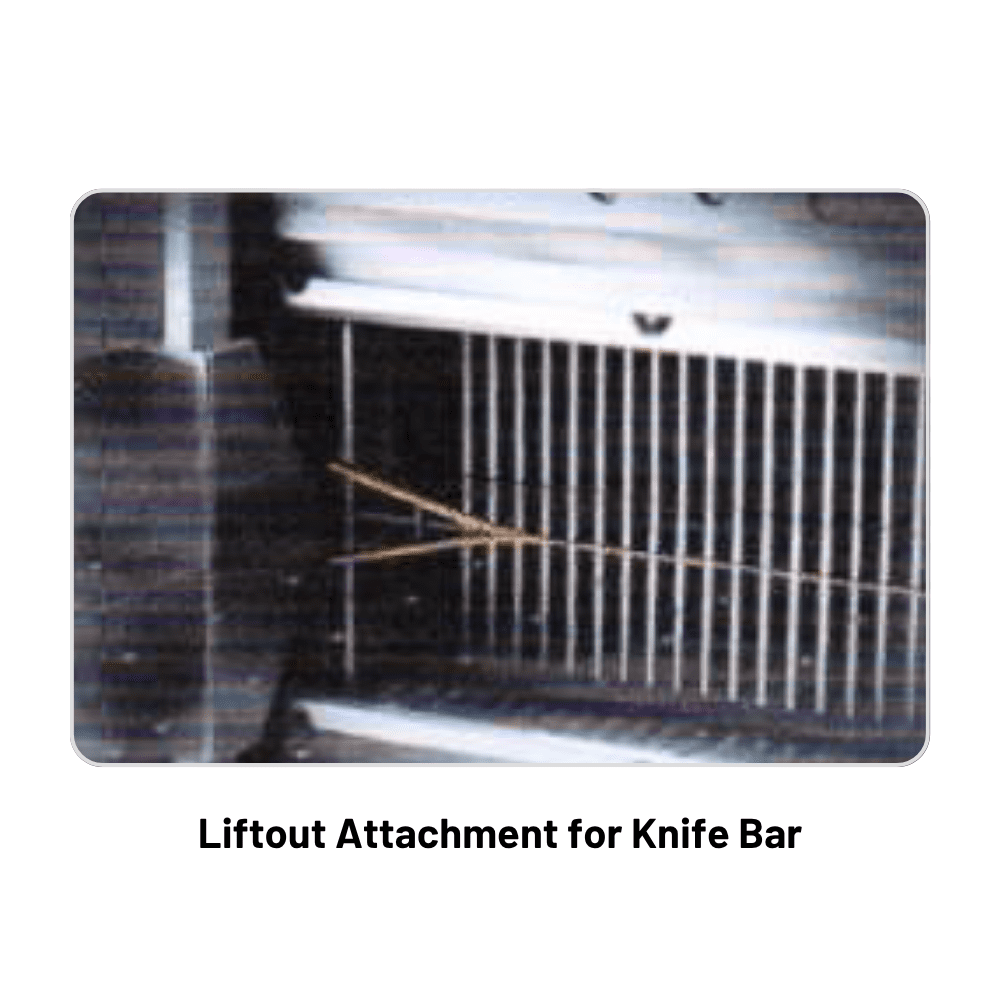

- Liftout Attachment for Knife Bar

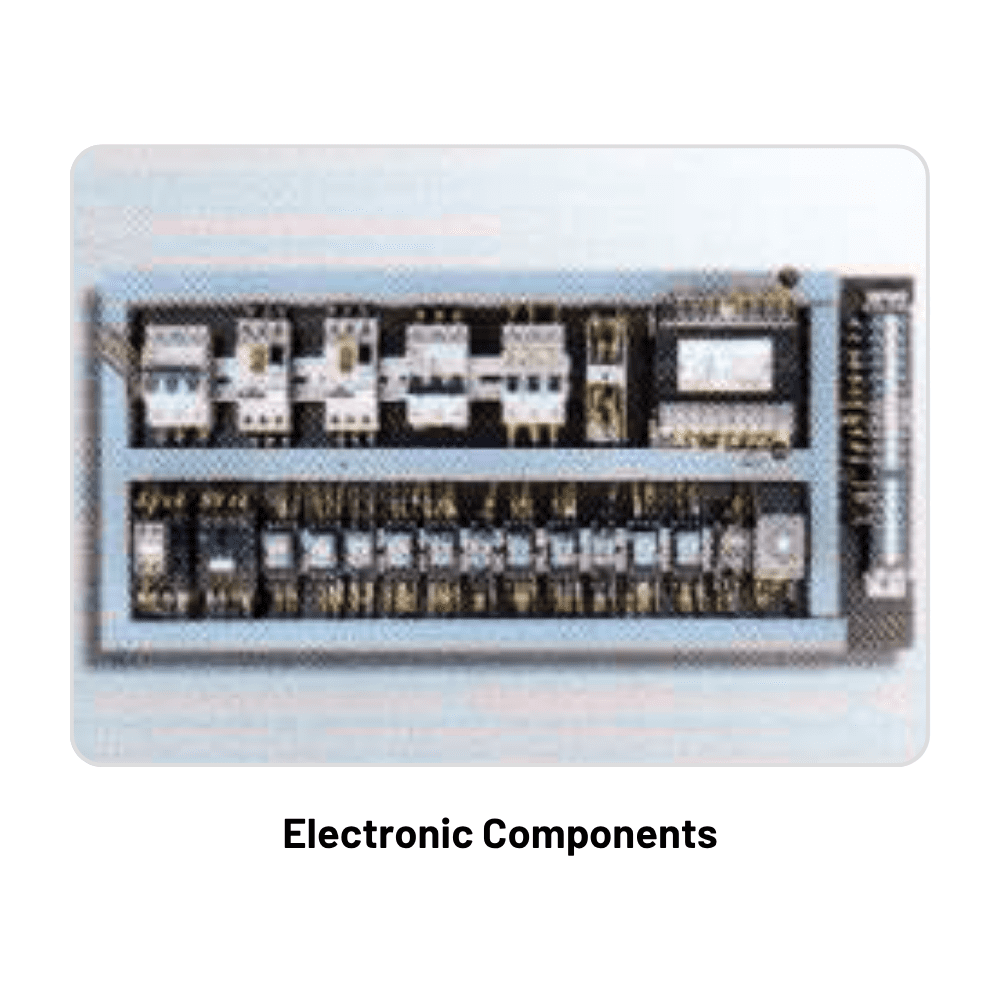

- Electronic Components: The main electronic units are imported, famous international brands.

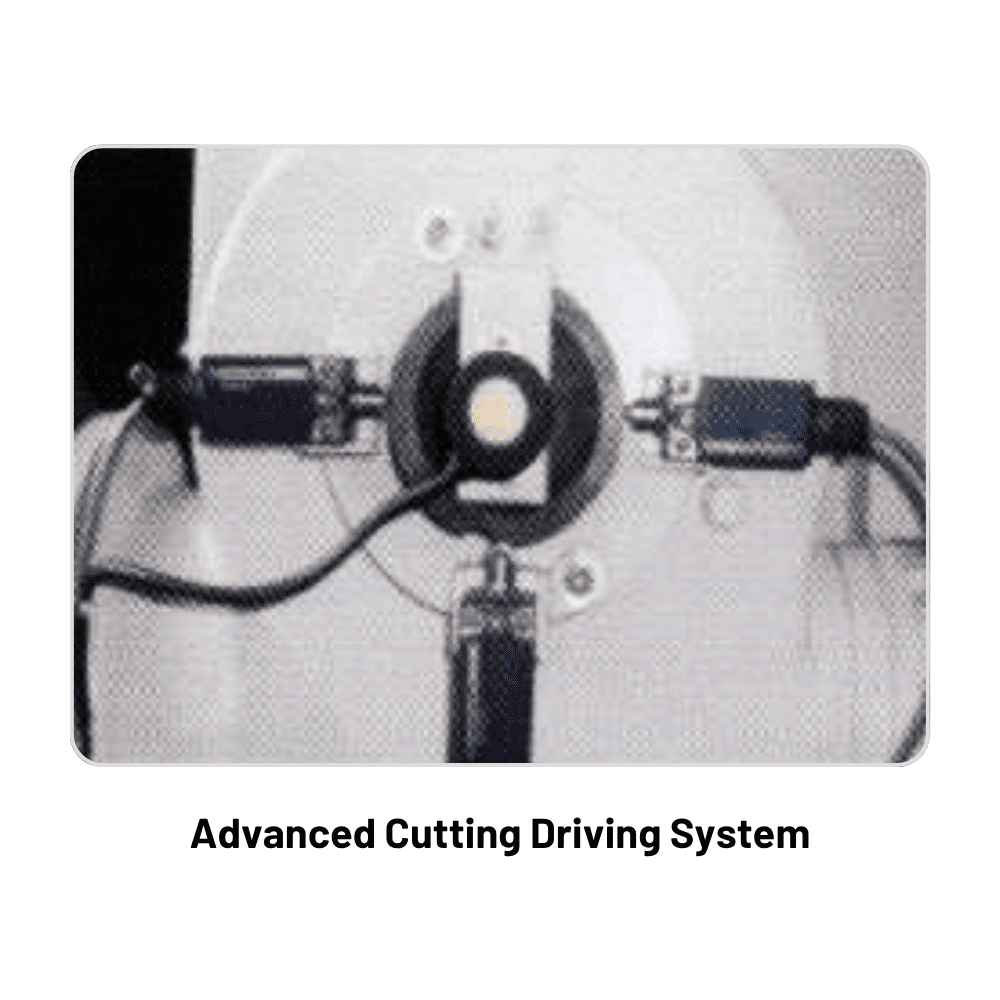

- Advanced Cutting Driving System

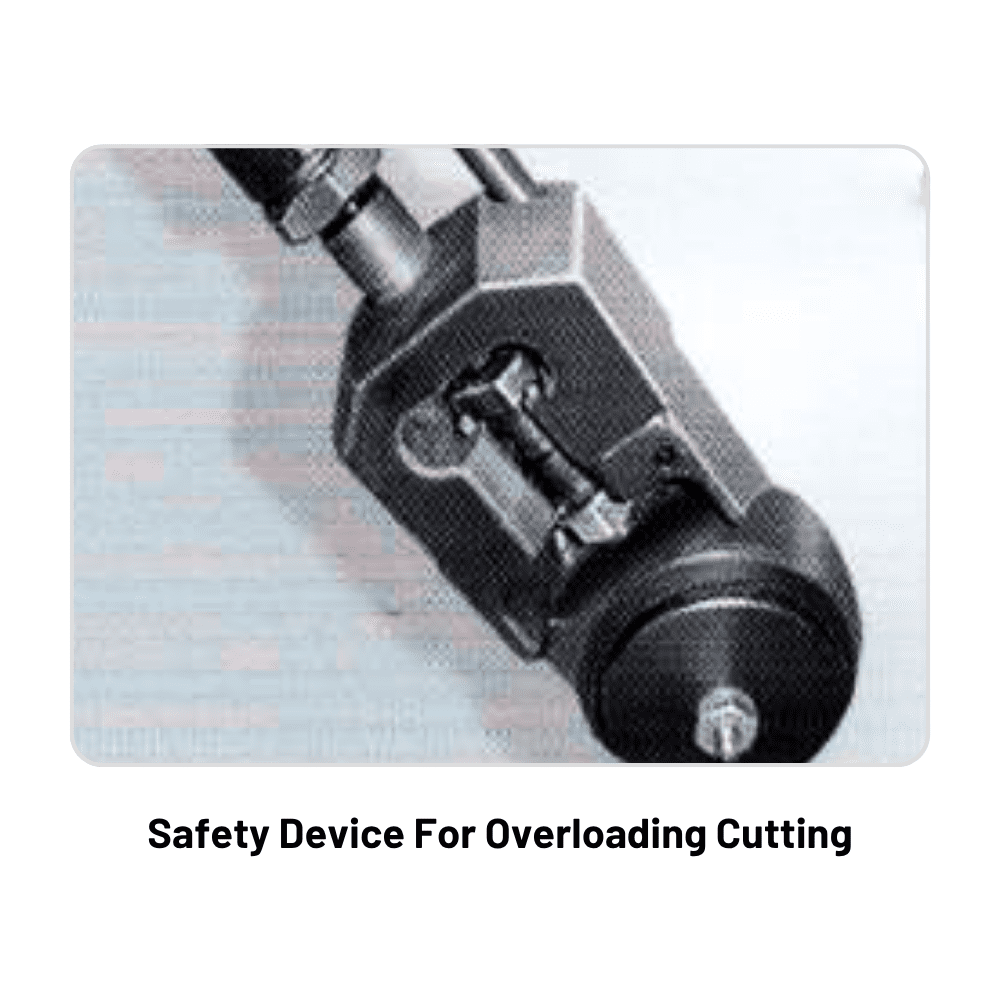

- Safety Device for Overloading Cutting

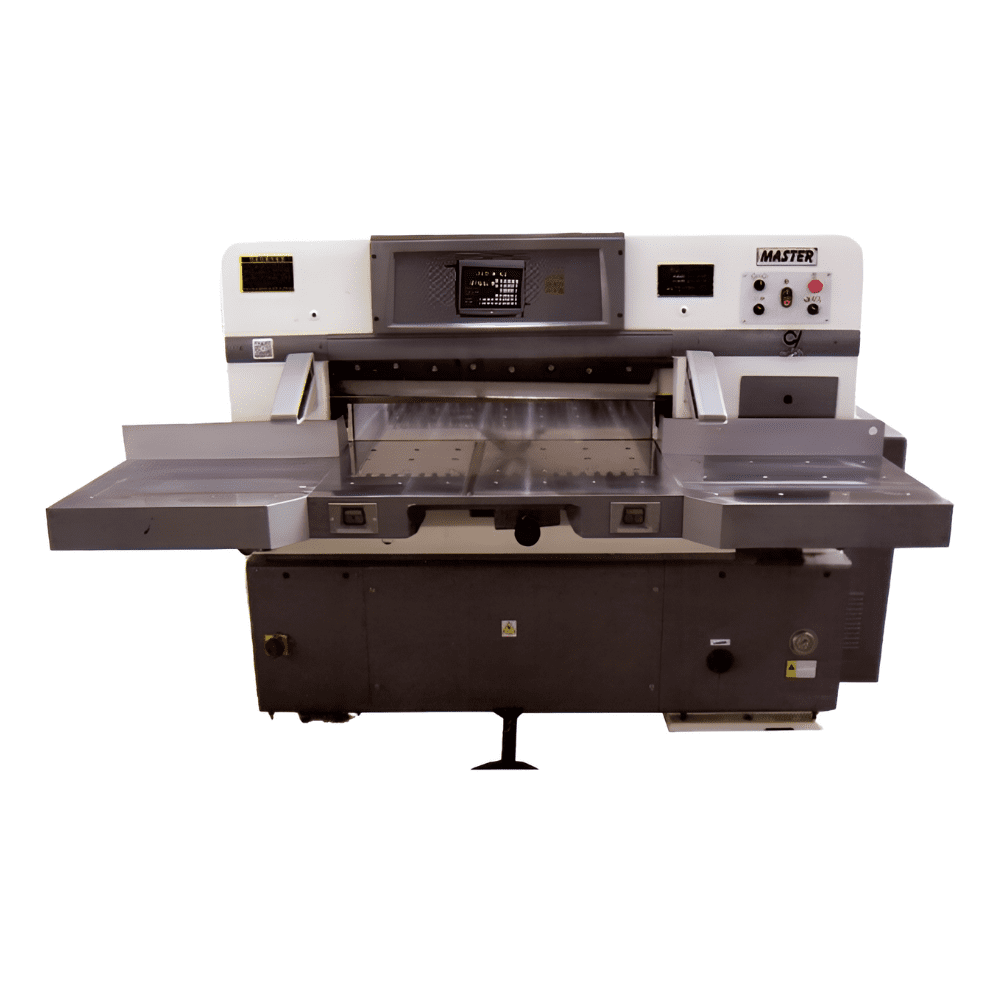

QZX-920W Double Digital Display
| Models | QZX-920W |
| Max. cutting width | 920mm |
| Max. cutting height | 120mm |
| Max. cutting length | 1100mm |
| Min. cutting length | 20mm |
| Work bench extension | 650mm |
| Work bench height | 880mm |
| Machine width | 2220mm |
| Machine length | 2320mm |
| Machine height | 1500mm |
| Thickness of machine foot foundation | 150mm |
| Width of machine foot foundation | 650mm |
| Cutting speed | 40 times/min |
| Max. clamping pressure | 35000N |
| Main motor power | 3kw |
| Feeding motor power | 0.37kw |
| Air pump motor power | 0.75kw |
| Machine net weight | 2600kg |
| Blade specification | 1100 x 127 x 12.7mm |
| Package size (length x width x height) | 2280 x 1400 x 1850mm |
