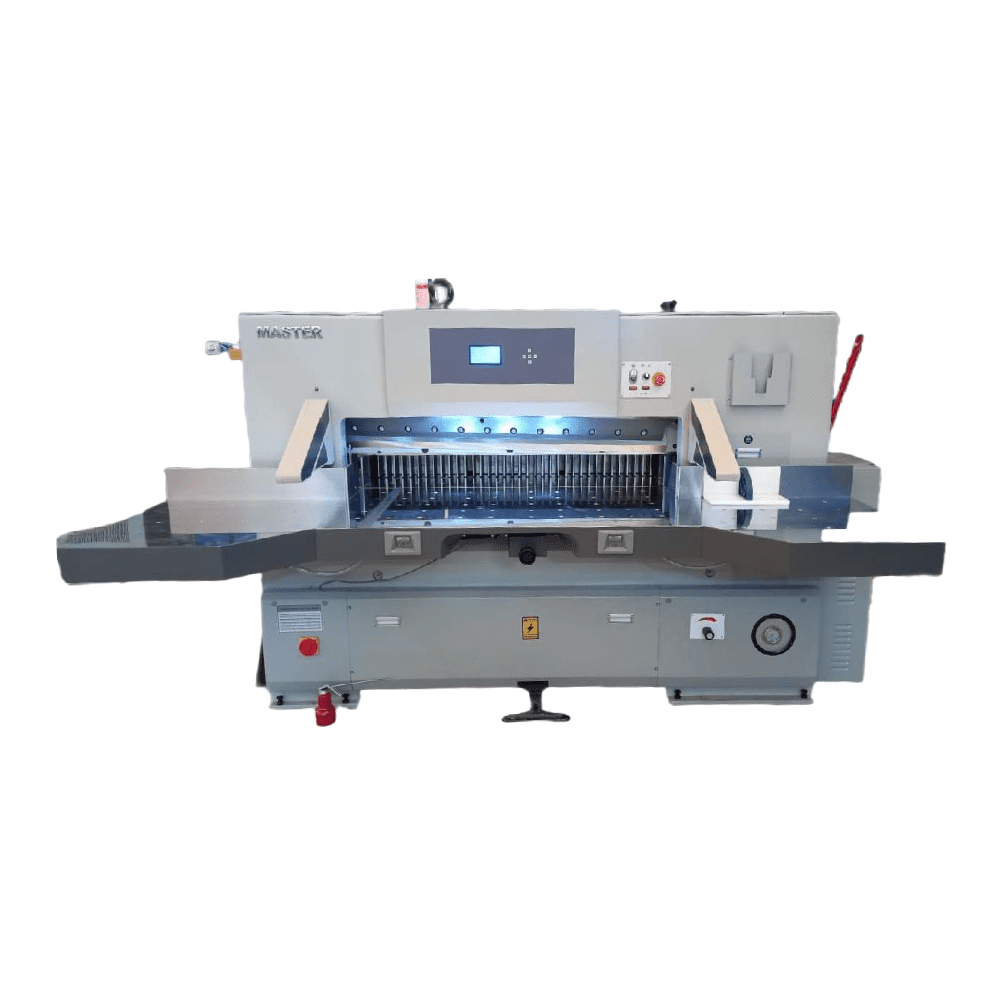

QZX1300CD Digital Display Paper Cutting Machine

  • Usage: QZX-CD Digital Display Paper Cuting Machine is used ot cut the printing paper
    of various kinds, paper products, thin film, etc.
  • Single Hydraulic Device: The hydraulic device pass CE certificate.
    Double Guide Device:the paper pusher adopts double imported linear guide and Grinding T shape screw., which can prolong the machine more precise.
  • Photo cell: is is equipped with a photo cell safety protection device.
  • Over load protection device; convenient knife changing device.
  • Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
  • Air ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
    Cutting controller: both of the user’s hands operate the machine. It can cut paper in one time.



QZX1300CD Digital Display Paper Cutting Machine

Models QZX1300CD
Max cutting width 130 cm
Max cutting length 135 cm
Max cutting height 13cm
Max clamping pressure 40000 N
Cutting speed 45 (cycles/min)
Cutting motor power 4kw
Sending paper motor power 0.55
Wind pump motor power 0.55
Net weight 4000kg
Outline dimension (LXWXH) 280x282x157 cm
Packing dimension (LXWXH) 273x141x200 cm
