This machine adopts pre-coating polyester film as laminating materials. Paper fed by manual can be laminated for single sides once. Auto-off
paper, paper manually closed. Hydraulic system in this machine serves as pressure source, and imported frequency-conversion for speed- regulating is adopted, which has the advantages of high pressure, fast speed and the surface will not be foaming.

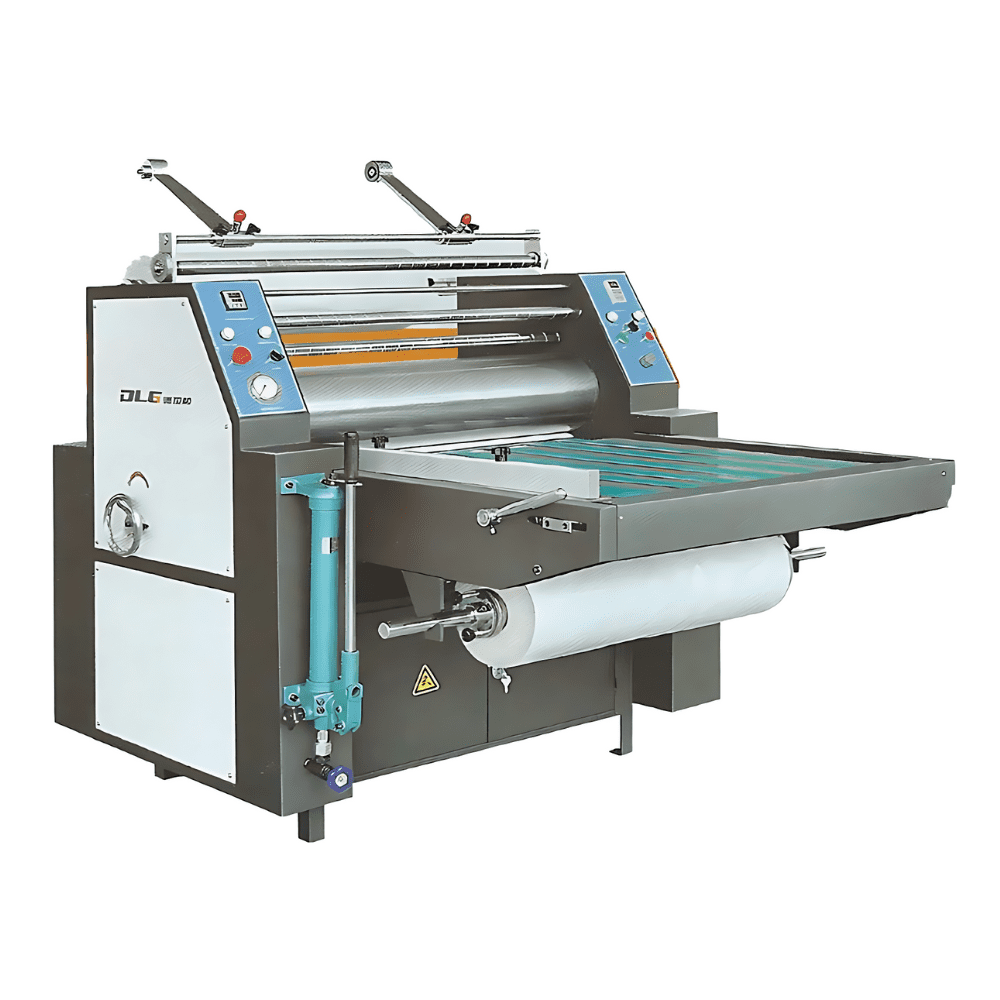

FM-920 Series Manual Hydraulic Film Laminating Machine
| Models | FM-720 | FM-920 | FM-1200 |
| Laminating width | 650mm | 880mm | 1200mm |
| Laminating speed | 0-30m/min | 0-30m/min | 0-30m/min |
| Motor power | 0.75kw | 1.5kw | 2.2kw |
| Heating power | 2.4kw | 3.6kw | 4.5kw |
| Laminating temperature | 60-130 °C | 60-130 °C | 60-130 °C |
| Paper weight | 80-600g/m² | 80-600g/m² | 80-600g/m² |
| Weight | 0.35t | 0.4t | 0.5t |
| Overall Dimension | 1450x1150x1300mm | 1450x1400x1300mm | 1450x1700x1300mm |
