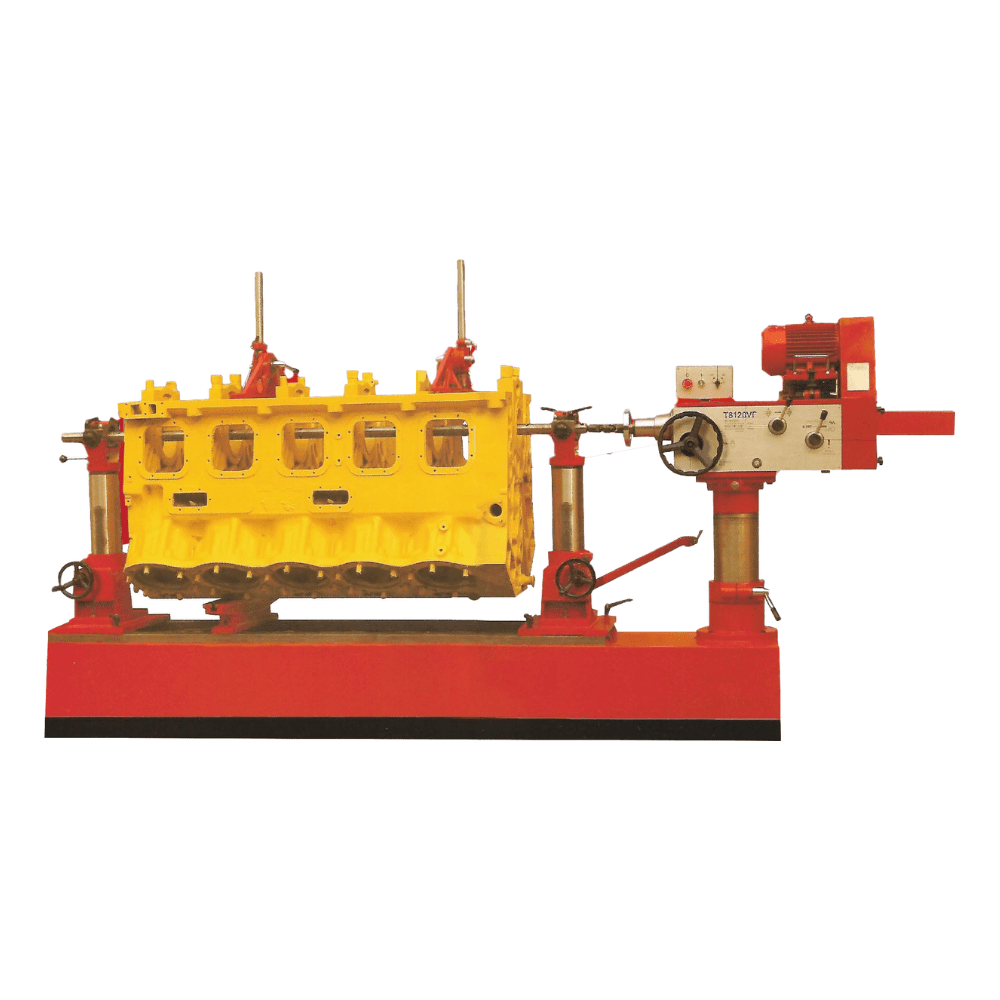

T8120VF Line Boring Machine
| Models | T8120VF |
| Range of hole diameter to be bored | Φ36-200mm |
| Max. length of cylinder body to be bored | 2000mm |
| Main shaft max elongation | 300mm |
| Main shaft rotating speed (stepless) | 30-500rpm |
| Boring shaft feed | 0.044, 0.167 mm/r |
| Motor power | 0.75/1.1 kw |
| Overall dimension (LxWxH) | 3900x800x1500mm |
| Packing dimension (LxWxH) | 4040x1020x1600mm |
| N.W/G.W | 2200/2500kg |
