Square type bed
Gearbox feeding
Accessories:
- Milling Head

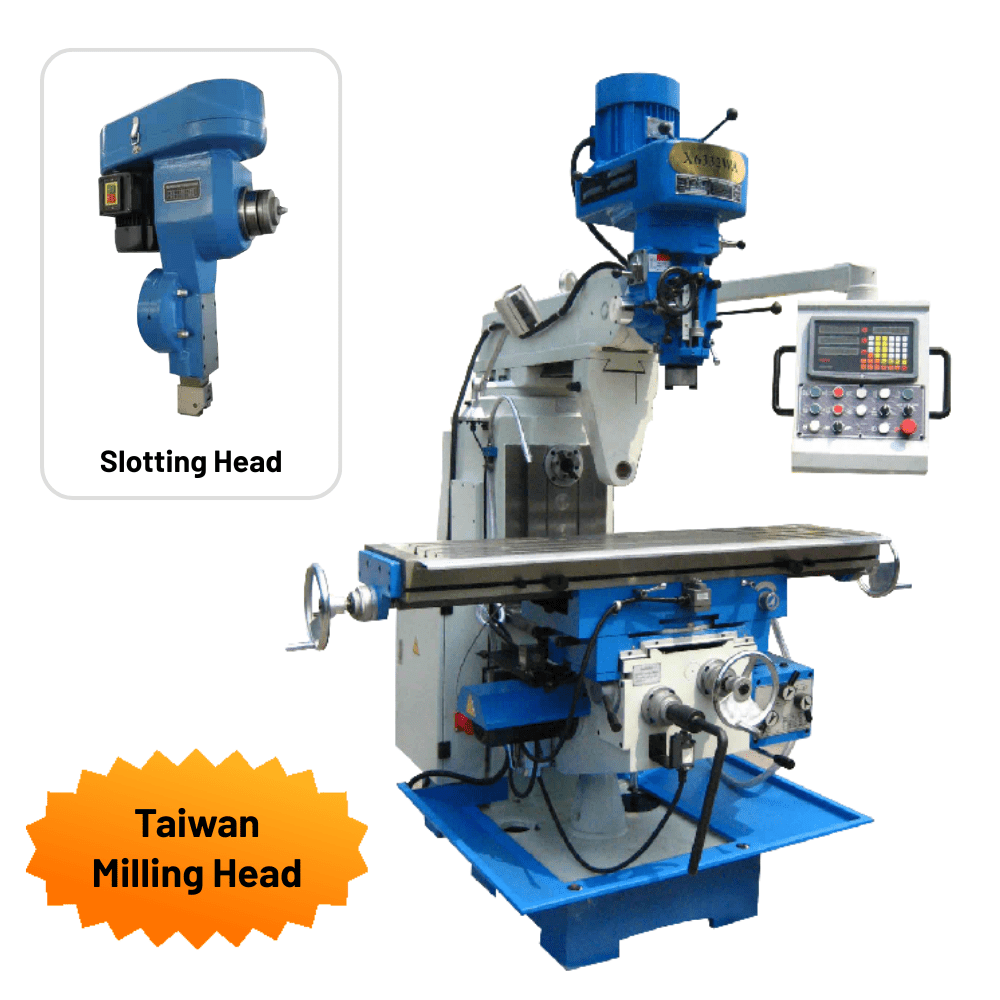

- Slotting Head
- Dividing Head
- Rotary Table
- Collet
- Vise
- Drill Chuck
- Dro Clamping Kit

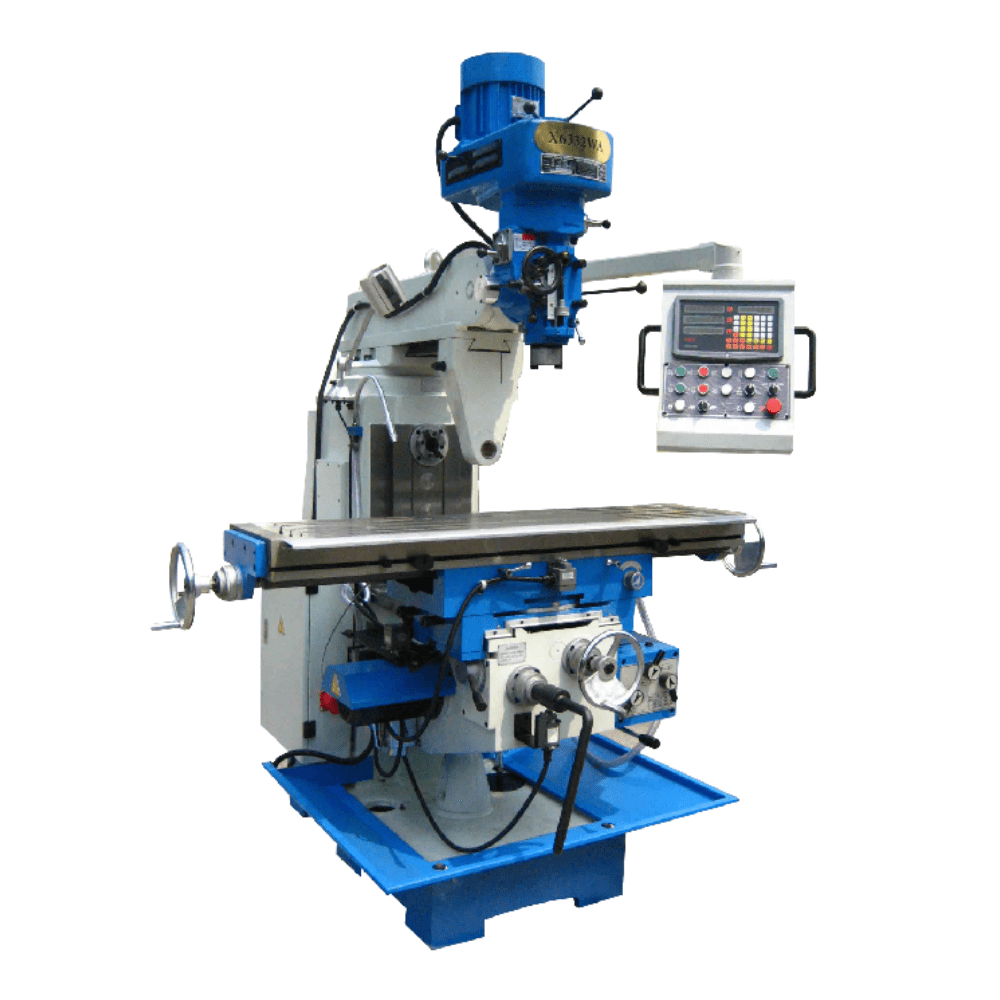

X-6332WA Vertical and Horizontal Turret Milling Machine
| Models | X-6332WA |
| Spindle taper | ISO40/NT40 |
| Spindle travel | 127mm |
| Max. horizontal milling dia. | 100mm |
| Spindle speed ranger (r.p.m.) | V 80-5400 r/min |
| H 40-1300 r/min | |
| Table size | 1370*320mm |
| Table travel | 600*340mm |
| Main motor (kw) | 3HP, 50Hz, 3Phase |
| Distance between spindle and table | 100-500mm |
| Max. vertical milling dia. | Φ25mm |
| Weight | 1500kg |
| Overall dimensions | 1520x1630x2200mm |
