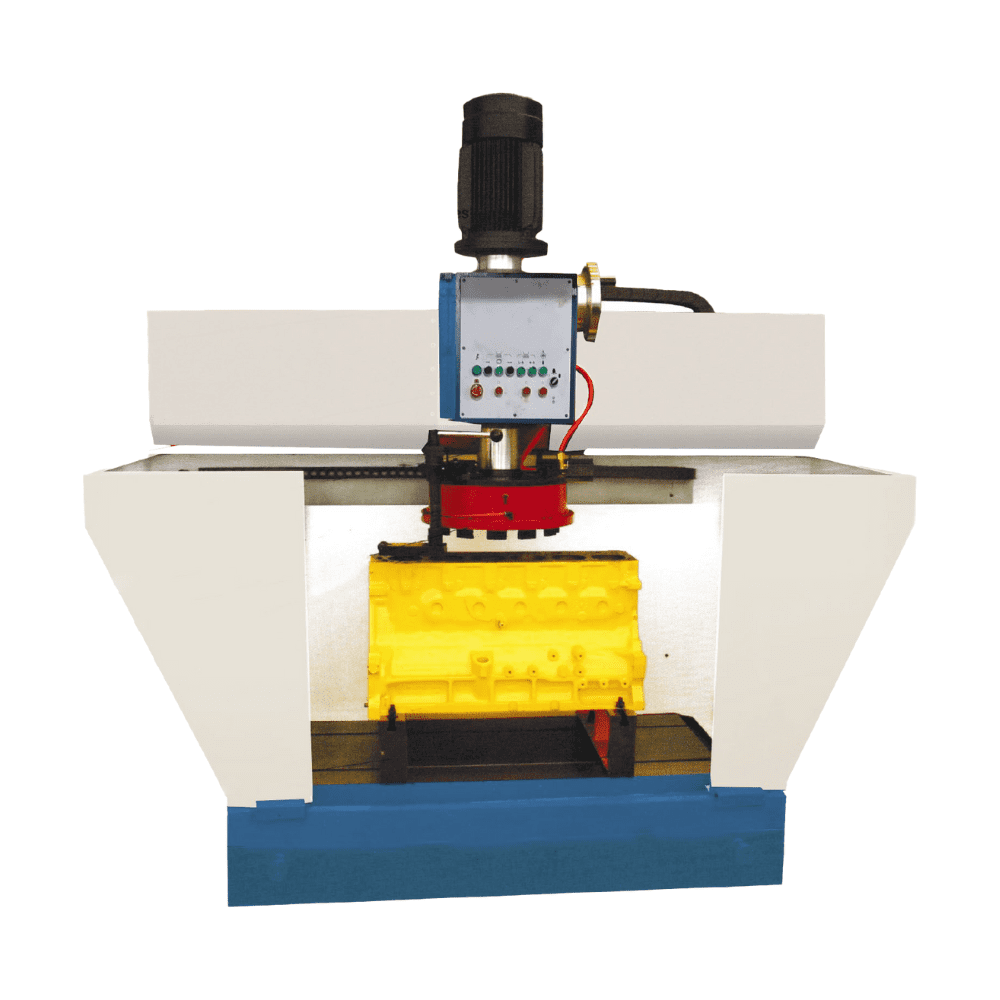

YG-1400
| Models | YG-1400 |
| Table size (LxW) | 1400x600mm |
| Max. width of grinding | 400mm |
| Max. length of grinding | 1400mm |
| Distance between table and wheel | 800mm |
| Max. wheelhead vertical travel | 120mm |
| Min. wheelhead vertical feed | 0.01mm |
| Speed of wheelhead in horizontal movement | 0-3000mm/min (stepless) |
| Dia. of grinding wheel | 400mm |
| Motor power of coolant pump | 0.25Kw |
| Motor power of grinding head | 4Kw |
| Motor power of gear box | 0.75Kw 1500 rpm |
| Overall dimension (LxWxH) | 2670x1200x2450mm |
