Hydraulic clamping
Hydraulic transmission
Hydraulic preselection
Electrical machinery double insurance

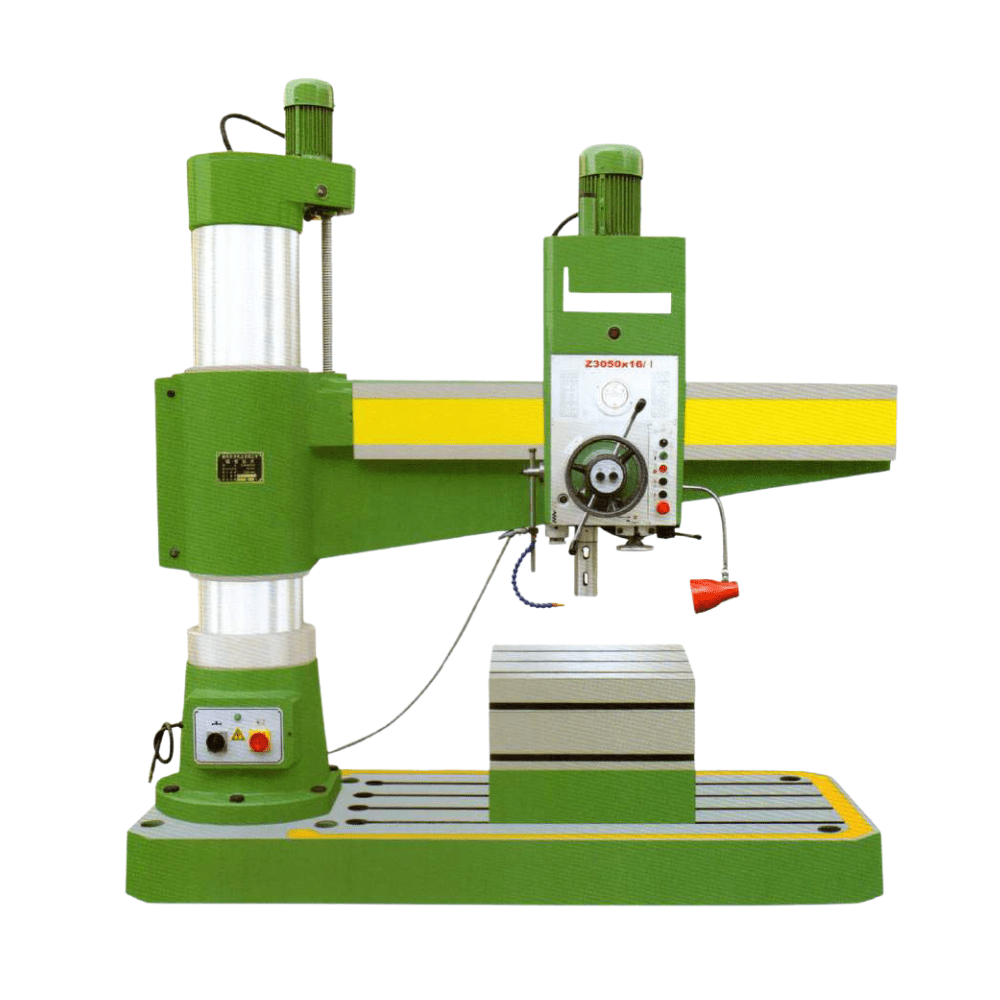

Z3050x 16/ 1 Radial Drilling Machine
| Models | Z3050 x16/1 |
| Mac drilling diameter | 50mm |
| Distance between spindle axis and column | 350 - 1600mm |
| Distance of headstock horizontal movement | 1250mm |
| Distance spindle nose and working surface of base | 320-1220mm |
| Rocker arm lifting distance | 580mm |
| Rocker arm lifting speed | 0.02 m/s |
| Rocker swing angle | ±180° |
| Spindle taper | MT5 |
| Range of spindle speeds | 25-2000 r/min |
| Number of spindle speeds | 16 levels |
| Vertical ( outer ) column diameter | 350 |
| Range of spindle feeds | 0.04 - 3.2 mm/r |
| Number of spindle feeds | 16 levels |
| Spindle travel | 315mm |
| Dial rotates the drilling depth | 122mm |
| Maximum permissible torque of spindle | 500 N.m |
| Maximum permissible feed pressure of spindle | 18000 N |
| Spindle motor power | 4 kw |
| Arm elevating motor power | 1.5 kw |
| Hydraulic clamping motor power | 0.75 kw |
| Cooling pump motor power | 0.09 kw |
| Machine weight | 3500kg |
| Overall dimension (LxW×H) | 2500 ×1070 x2840 mm |
