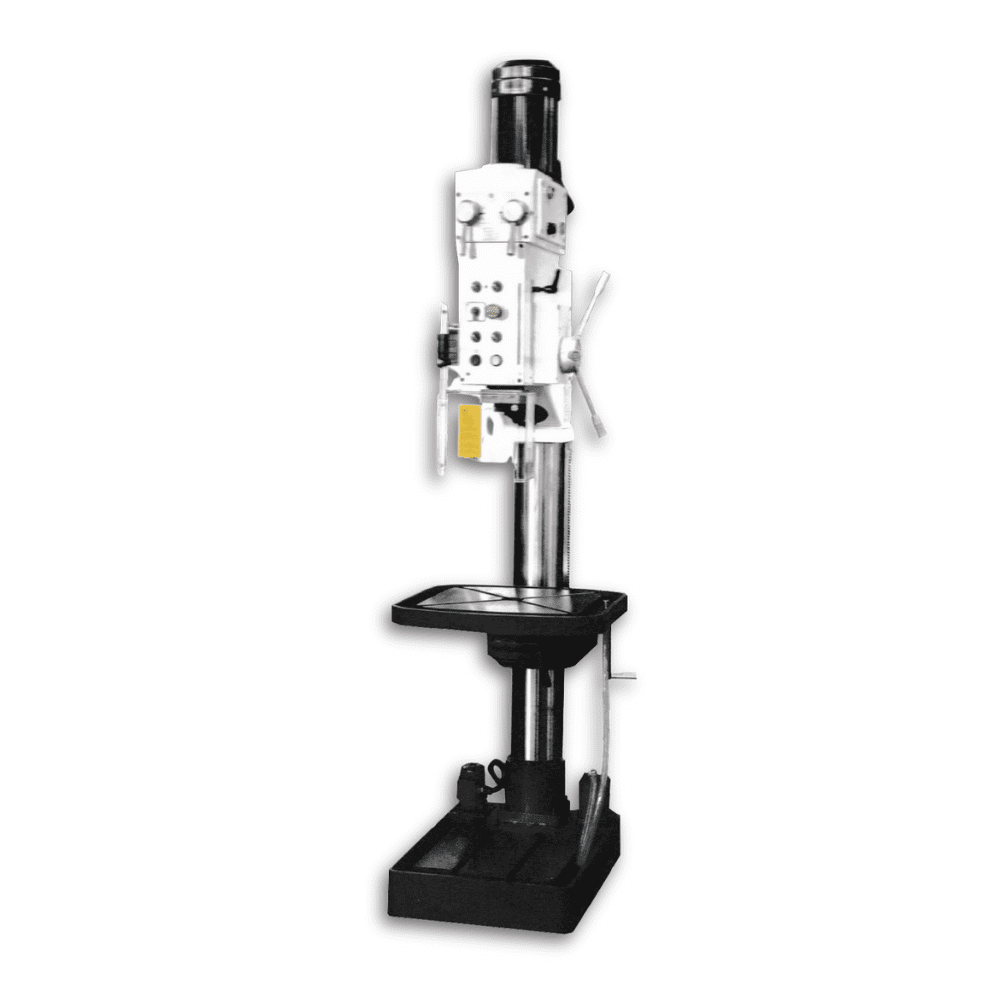

Z5040+Z5050 Vertical Drilling Machine with Autofeed
| Models | Z5040/40A | Z5050 |
| Maximum drilling diameter | 40mm | 50mm |
| Taper of spindle hole | MT4 | MT4 |
| Distance from the center of spindle to the surface of the vertical column | 350mm | 375mm |
| Max. travel of spindle | 180mm | 230mm |
| Range of spindle speed | 50-1450r/min | 54-2090r/min |
| Max. distance from spindle nose to base plate working surface | 1320mm | 1300mm |
| Max. distance from spindle nose to working table | 780mm | 800mm |
| Dimensions of working table | 560x560mm | 600x600mm |
| Dimension of base | 730x500mm | 860x600mm |
| Width of T slot | 18mm | 18mm |
| Distance of T slot of base | 150mm | 280mm |
| Range of feed | 0.1, 0.2mm/rev | 0.05, 0.1, 0.15, 0.2, 0.25, 0.3mm/rev |
| Power of main motor | 1.5Kw | 3.0/2.4Kw |
| Power of coolant pump | 60W | 40W |
| Overall dimension (LxWxH) | 73x56x222cm | 61x102x245cm |
| Packing size (LxWxH) | 113x70x228cm | 258x75x114cm |
| Gross weight/net weight | 545kg | 920/820kg |
