Accesories:
- 1x Vise
- 1x Drill chuck
- 1x Milling cutter
- 1x Screw driver
- 3x L wrench
- 1x Socket wrench
- 1x Handle

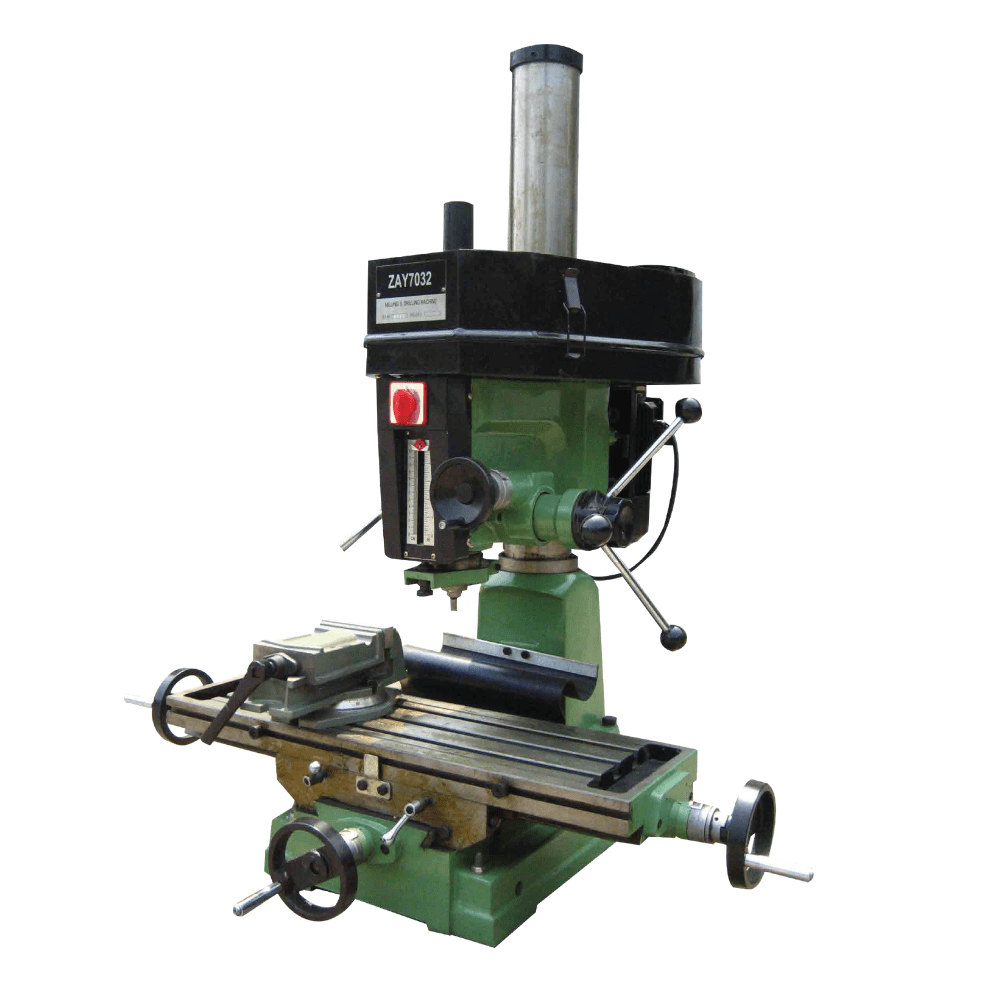

ZAY7032H
| Models | ZAY7032H |
| Max. drill capacity | 32mm |
| Max. mill capacity (End/Face) | 32/80mm |
| Swivel angle (Horizontal/Perpendicular) | 360° |
| Distance from spindle axis to column surface | 203.5mm |
| Spindle travel | MT3.R8 |
| Distance between spindle nose to table | 400-650mm |
| Spindle travel | 130mm |
| Step of speeds | 12 |
| Range of speeds (50Hz) | 80-2080 r/min |
| 4 Pole motor (60Hz) | 100-2500 r/min |
| Table size | 800x240mm |
| Forward and backward travel of table | 205mm |
| Lift and right travel of table | 585mm |
| Power | 1.5Kw |
| Voltage/Frequency | 1 Phase - 220V |
| 3 Phase - 380V | |
| Net/Gross weight | 265/320kg |
| Packing size (LxWxH) | 1030x832x1160(1400)mm |
