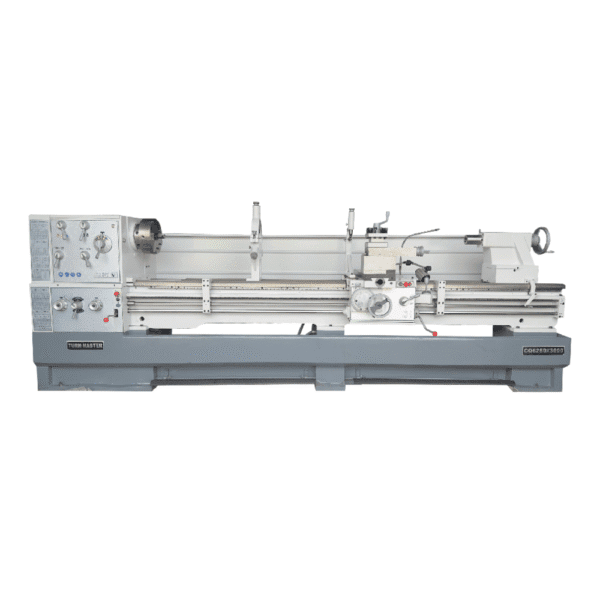

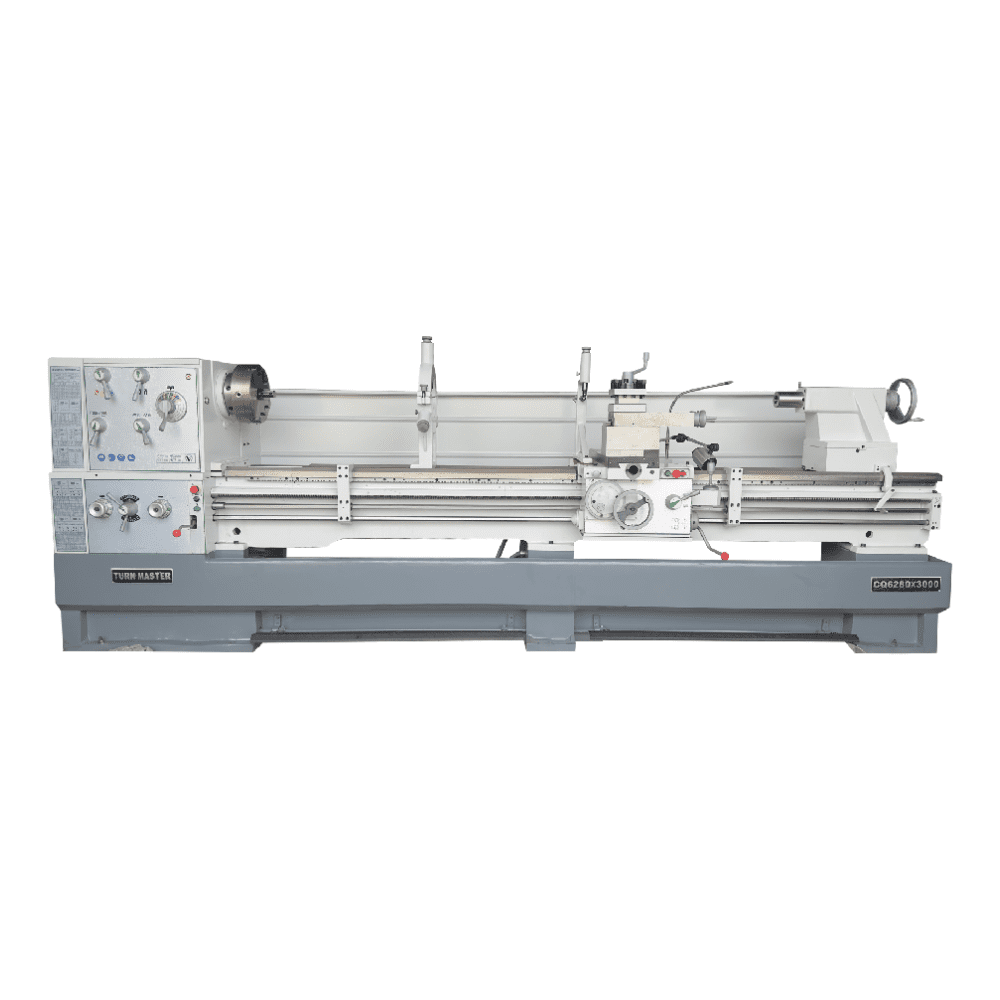

CQ6280 High Precision Lathe Machine
| Models | CQ6280 |
| Capacity | |
| Swing Over Bed | Φ800mm |
| Swing Over Cross Slide | Φ570mm |
| Swing in gap diameter | Φ1035mm |
| Length of gap | 250mm |
| Center height | 400mm |
| Distance between centers | 1500mm/2000mm/3000mm |
| Width of bed | 400mm |
| Max. section of tool | 25mmx25mm |
| Max. travel of cross slide | 420mm |
| Max. travel of compound rest | 230mm |
| Headstock | |
| Spindle bore | Φ105mm |
| Spindle nose | D1-8 |
| Taper of spindle bore | Φ113mm (1:20)/MT5 |
| Spindle speed number | 16 |
| Range of spindle speed | 25-1600r/min |
| Threads & Feeds | |
| Leadscrew pitch | Φ40mmx2T.P.I. or Φ40mmx12mm |
| Inch threads range | 7/16-80T.P.I. (54 kinds) |
| Metric threads range | 0.45-120mm (54 kinds) |
| Diametrical pitches range | 7/8-160DP (42 kinds) |
| Module pitches range | 0.25-60MP (46 kinds) |
| Longitudinal feeds range in metric leadscrew | 0.044-1.48mm/rev (25 kinds) |
| Longitudinal feeds range in inch leadscrew | 0.00165”-0.05497”/rev (25 kinds) |
| Cross feeds range in metric leadscrew | 0.022-0.74mm/rev (25 kinds) |
| Cross feeds range in inch leadscrew | 0.00083-0.02774”/rev (25 kinds) |
| Tailstock | |
| Quill travel | 235mm |
| Quill diameter | Φ90mm |
| Quill taper | MT5 |
| Motor | |
| Main motor power | 7.5Kw (10HP) |
| Coolant pump power | 0.09Kw (1/8HP) |
| Dimension and weight | |
| Overall dimension (LxWxH) | 321/371/471 x 123 x 167cm |
| Packing size (LxWxH) | 324/374/474 x 114 x 191cm |
| Net weight | 3220/3505/3870kg |
| Gross weight | 3705/4005/4480kg |
