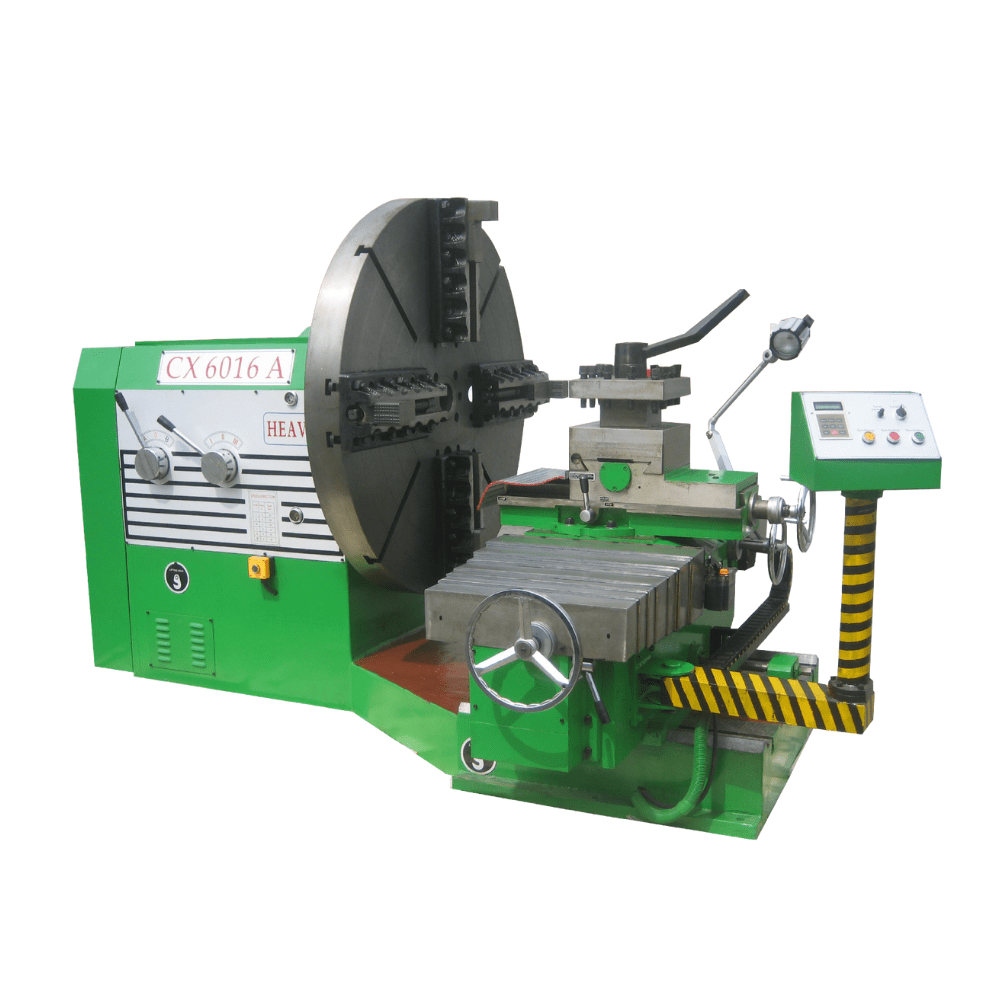

CX-6016, CX-6020, CX-6025 Heavy Lathe Machine
| Models | CX-6016 | CX-6020 | CX-6025 |
| Diameter of chuck | 1400 | 1600 | 2000 |
| Max. Diameter of workpiece | 1600 | 2000 | 2500 |
| Max. Length of workpiece | 400 | 600 | 600 |
| Max. Weight of workpiece | 2T | 3T | 3T |
| Spindle Speed | 16-128 | 12-94 | 12-94 |
| Longitudinal stroke of slide | 800 | 900 | 1100 |
| Horizontal stroke of slide | 320 | 600 | 600 |
| Motor Power | 11Kw | 15Kw | 15Kw |
| Power Feeding | 1.1Kw | 1.1Kw | 1.1Kw |
| Machine Dimension (mm) | 3000x1600x1800 | 3000x2200x2000 | 3250x2500x2300 |
| Machine Weight | 5T | 8T | 9.5T |
