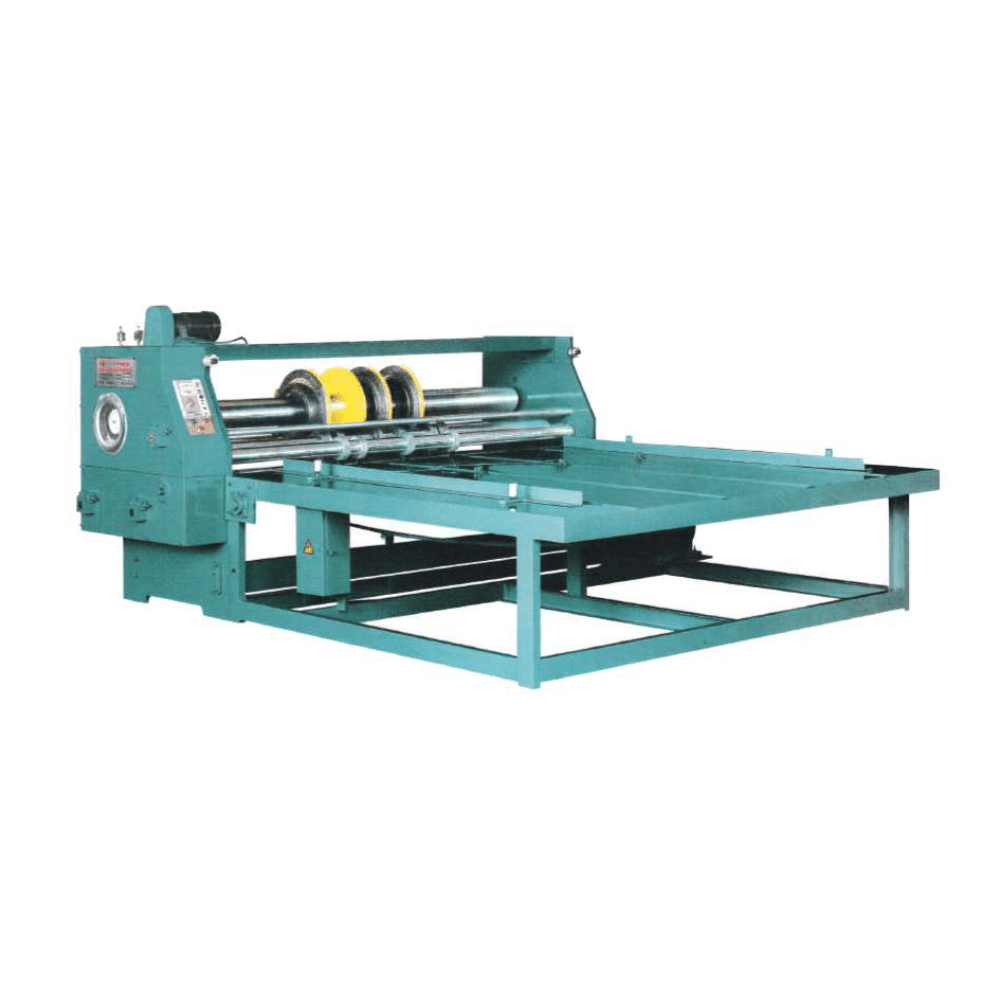

SJL Master Rotary Slitter And Slotter Machine

Features
• Phase adjustment is motorized
• Able to slit, score, flap cut in one pass
• The chain is used to send board, with simple adjustment and high working efficiency.
• Hole making equipment can be provided, handholds etc.

Model Number	SJL-800	SJL-1200	SJL-1500	SJL-1800	SJL-2000	SJL-T-2400
Max size of board	800x1600 mm	2000x1200 mm	2500x1550 mm	2800x1800 mm	3000x2000 mm	3500x2400 m
Min size of board	500x250 mm	600x350 mm	600x400 mm	600x500 mm	800x550 mm	800x650 mm
Depth of Slotting	250 mm	320 mm	400 mm	480 mm	550 mm	700 mm
Width of Slotting	7mm	7mm	7mm	7mm	7.5 mm	7.5 mm
Slotting speed	0-70 pcs/min	0-70 pcs/min	0-70 pcs/min	0-70 pcs/min	0-70 pcs/min	0-60 pcs/min
Power	4 kw	4 kw	4 kw	7.5 kw	7.5 kw	11 kw
Weight	4000kg	4900 kg	6000 kg	8000 kg	9000 kg	11000 kg
Dimension (LxWxH)	2415x2690x1550 mm	3130x2780x1600 mm	3650x3200x1650 mm	4310x3630x1810 mm	4620x3840x1910 mm	5030x4425x2220 mm
